Steel university classroom door with transom window Steel university classroom door with transom window Steel university classroom door with transom window Steel university classroom door with transom window

Homein Steel university classroom door with transom window

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    CMD17
  • Door Type.:

    Single door, swing door
  • Material

    Galvanized steel+glass
  • Application:

    Commerical
  • Color:

    Powder-coating,Grey
  • Design:

    1 Panel embossed door
  • Style:

    Modern
  • Lead Time:

    20 days
  • Suppliy ability:

    2000 Sets per Month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c BS476
  • Ref Price:

    300 USD

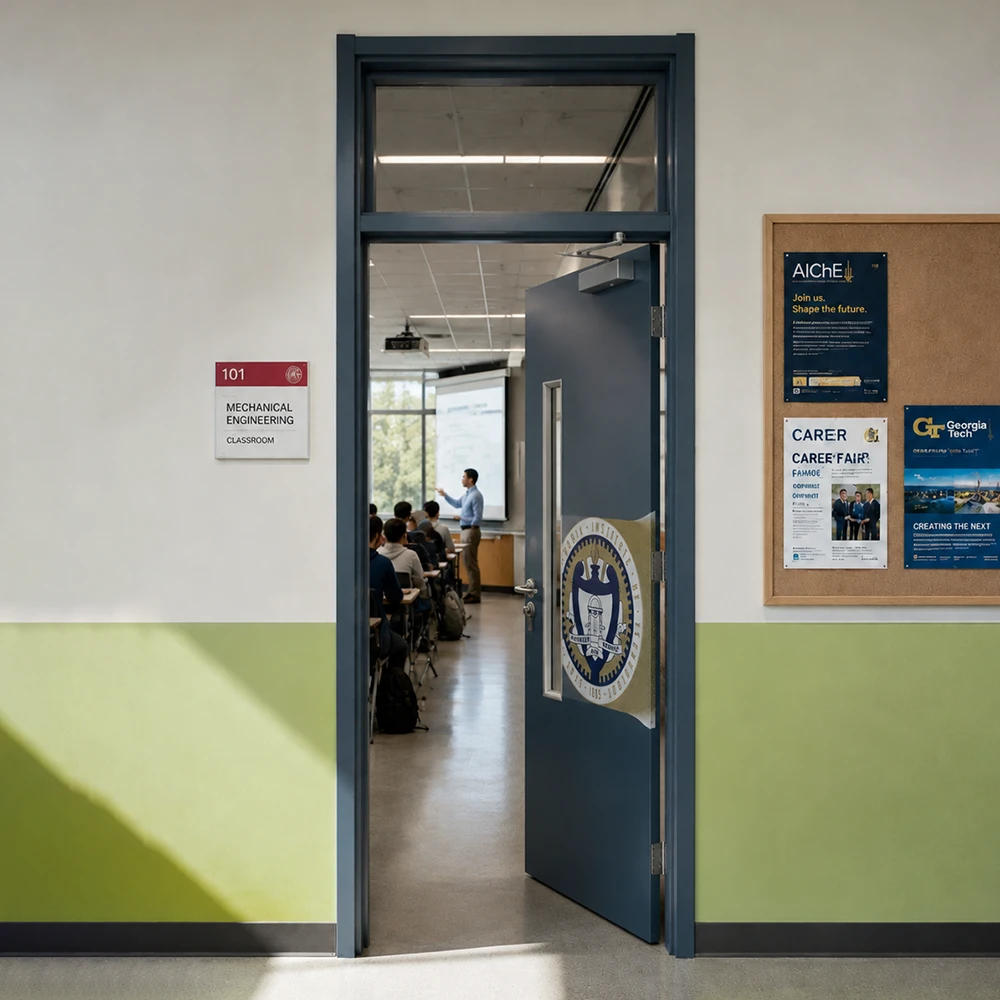

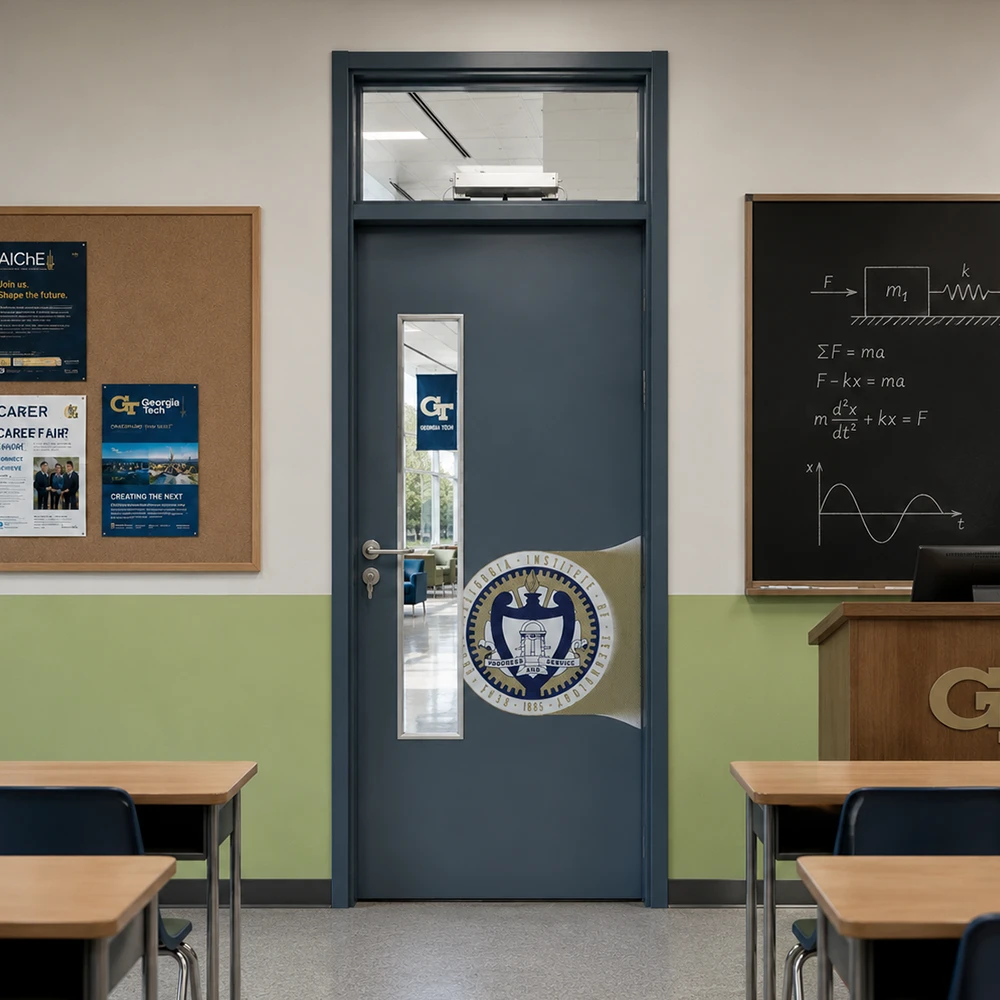

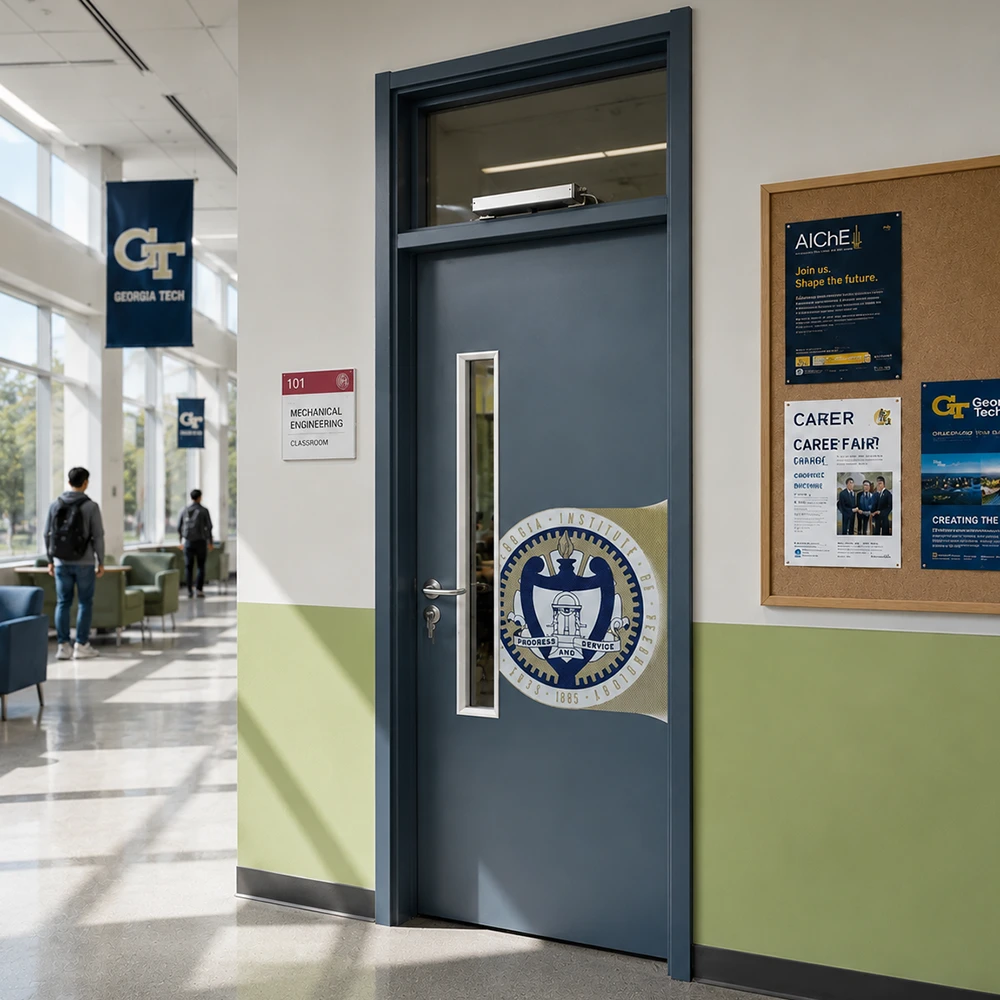

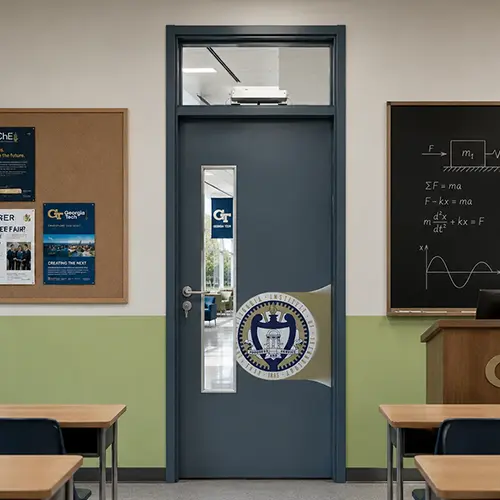

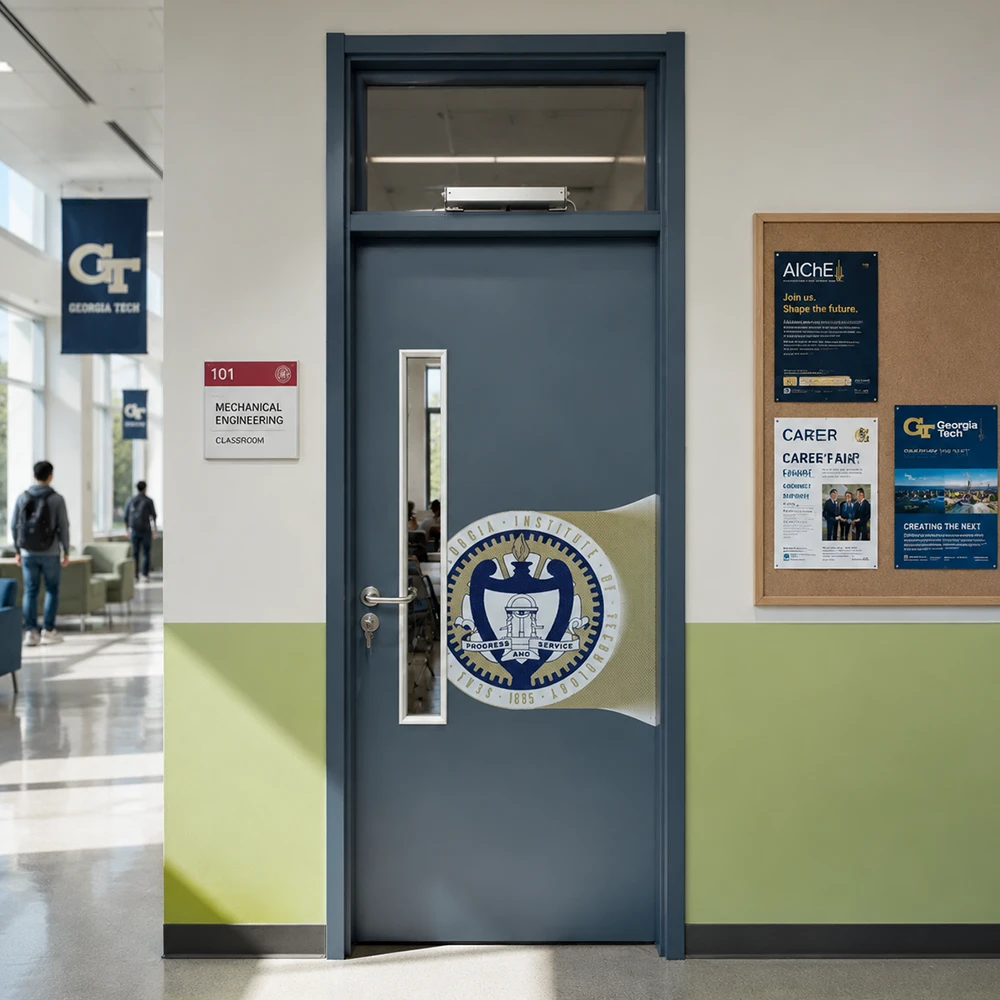

Steel University Classroom Door with Transom Window

The steel university classroom door with transom window is designed for modern university classrooms, school buildings, training rooms, and other high-traffic educational spaces.

The door comes with a narrow rectangular vision panel, allowing teachers, staff and students to observe the classroom easily without disturbing the class. Above the door, the transom window helps natural light transmit into the classroom, making the classroom feel brighter. The transom window can also be opened to improve air circulation and keep the classroom fresh and comfortable. For safety, both the vision panel and transom window use laminated tempered safety glass.

The door is made from heavy-gauge galvanized steel with a solid core, giving it strong resistance against daily scratches, dents, and impact. This durable and strong structure makes it suitable for frequent student use in busy university environments.

For reliable performance, the door is equipped with commercial-grade ANSI Grade 1 hinges and lockset. These components are built for high-frequency daily operation. The handle features a rounded-edge design without sharp corners, helping improve safety for students and teachers.

Strong, safe, durable, and practical, this steel classroom door is an ideal choice for university classroom projects.

Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Hardware Lock; Hinge; Closer
STC Max STC56
Fire rate Max 120min
Width Std:3ft (customizable Max: 1250mm single leaf)
door handing Right hand interior
Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

door handing Left hand interior
Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

door handing Right hand outside
Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

door handing Left hand outside
Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction (Optional)

door with Hollow core steel door
Hollow core steel door

45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Honeycomb paper core

door with Aluminum Hollow steel door
Aluminum Hollow steel door

45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Aluminum Honeycomb paper core

door with Fireproof mineral core steel door
Fireproof mineral core steel door

45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Fireproof mineral core; smoke seal all round

door with Acoustic core steel door
Acoustic core steel door

60mm or 70mm Thk; 0.8 or 1.0 galvanized steel panel; Acoustic core; acoustic seal all round

Door Frame Type (Optional)

Knock-down frame A
Knock-down frame A

1.2-1.8mm Galvanized steel frame; Knock-down frame;

Knock-down frame B
Knock-down frame B

1.2-1.8mm Galvanized steel frame; Knock-down frame;

Double rebate frame
Double rebate frame

1.2-1.8mm Galvanized steel frame; welded frame;

Double egress frame
Double egress frame

1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door

Weld frame
Weld frame

1.2-1.8mm Galvanized steel frame; welded frame;

Standard Door Hardware

Standard Mortise Lock
Standard Mortise Lock

SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 3hours

View More >>>
Standard Lock for USA
Standard Lock for USA

SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 2hours

View More >>>
fire rated door Hydraulic closer
fire rated door Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Fireproof Butt Hinge
Fireproof Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>
Door catcher
Door catcher

SUS304 stainless steel; Magenatic catcher

View More >>>

Glass lite (Optional)

Laminated fire glass
Laminated fire glass

Laminated fire glass 20~40mm thick, standard is 25mm,Fire-resistant up to 180 minutes

Fireproof Wired glass
Fireproof Wired glass

Thick 6mm; 90min fire rated; Classified and labeled

Schott FR clear glass
Schott FR clear glass

Thick 5mm; 2 hour fire rated; Classified and labeled
