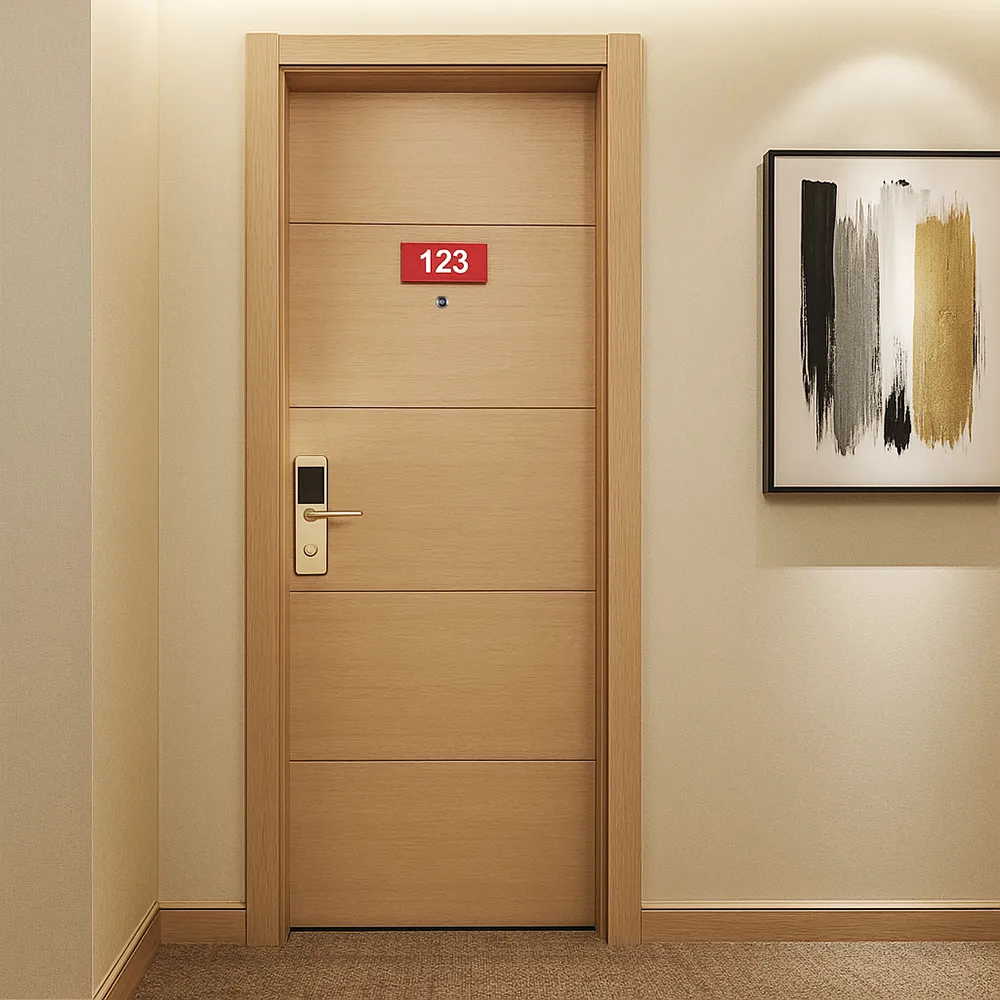

Homein Hotel UL listed 20 minutes fire rated wood guestroom door

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
GFD31
Door Type.:
Single door, swing door
Material
Hardwood wood + Mineral core
Application:
Hotel suite room,Guestroom
Color:
Rift Oak venner + paint
Design:
Flush grooved door
Style:
Modern
Lead Time:
30 days
Suppliy ability:
1500 Sets per Month
Place of Origin:
Yongkang city, China
Certificate:
UL BS476 EN1634
Ref Price:
265 USD

The Hotel UL-listed 20-minute fire-rated wood guestroom door is specially designed for hotel room door. It is suitable for different types of hotels, from normal hotel to luxury 5-star hotels; This door meet critical fire safety and acoustic requirements, helping to protect guests while also creating a quieter and comfortable room environment. With its 20-minutes fire-rated performance, it can help slow the spread of fire and smoke when on fire, The door can be customized with different finishes, colors, and designs to match various hotel decoration styles. Whether the hotel interior is modern, classic, simple, or high-end, this wood guestroom door can blend well with the overall space and improve the appearance of the room. Besides safety, the door also helps reduce noise from corridors and nearby rooms, STC grade reach 42Db, giving guests a more private and peaceful stay; Strong structure, reliable fire-rated performance,good sound-proof and attractive design make this door goood choice for hotel guestroom projects.

1. Certifications and Standards:

UL Listed – 20-Minute Fire Rating (UL 10C or UL 10B)
NFPA 80 compliant
Meets IBC and ADA accessibility requirements
STC rating: Minimum 36Db
Optional: Positive pressure and smoke seal rated

2. Door Construction:

Core Type: fireproof Solid chipboard core
Face Material: Natural wood veneer (e.g., oak, maple, cherry, walnut) or high-pressure laminate (HPL)
Finish: Factory-finished with clear coat or stain per project design
Thickness: 1-3/4 inches (44.5 mm)
Edges: Matching hardwood stiles with fire-rated blocking or intumescent edge sealing (if required)
Reinforcements: Prepared for mortise lock, viewer, and hardware as per hotel standard

3. Frame Requirements:

Fire-rated wood or hollow metal frame, UL listed for 20-minute use
Frame to include smoke or intumescent seals where required by code
Factory prefinished or site-painted to match design intent

4. Hardware Compatibility:

Compatible with UL-listed fire-rated mortise locks, card access systems, closers, and hinges
Minimum 3 hinges per leaf (UL-listed, ball bearing type)
concealed door closer (fire-rated type)
Door viewer (UL-listed, if required)
Gasketing and bottom seal per acoustic or smoke control needs
Security guard

5. Acoustic (Optional):

STC 30–36 available upon request for improved guestroom sound isolation
Use of perimeter seals and drop-down bottom seals recommended for acoustic performance

Leaf thick	45min/20min-45mm / 60min-55mm
Door core	chipboard or mineral core
Dooor Face panel	MDF or plywood
Stile & rail	Hardwood (Beech or lauan)
Frame material	Hardwood or composite wood
Finish	Paint / HPL laminates
Sound-isolation	Max 36Db
Fire rate	20min 45min 60min 90min
Certificate	UL, BS476,EN1634
Size	Custom size (standard 3*7ft)
