Homein Fireproof steel full louvered double exit door with push bar
MOQ: 1PCS
Custom Size
Fast Delivery
Quality Assurance
Item NO.:
LMD02Door Type.:
Single door, swing doorMaterial
Galvanized steelApplication:
Electrical room, factoryColor:
Powder-coating, GreyDesign:
Door with vision panel and louverStyle:
ModernLead Time:
30 daysSuppliy ability:
1500 sets per monthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10c EN1634Ref Price:
300 USD

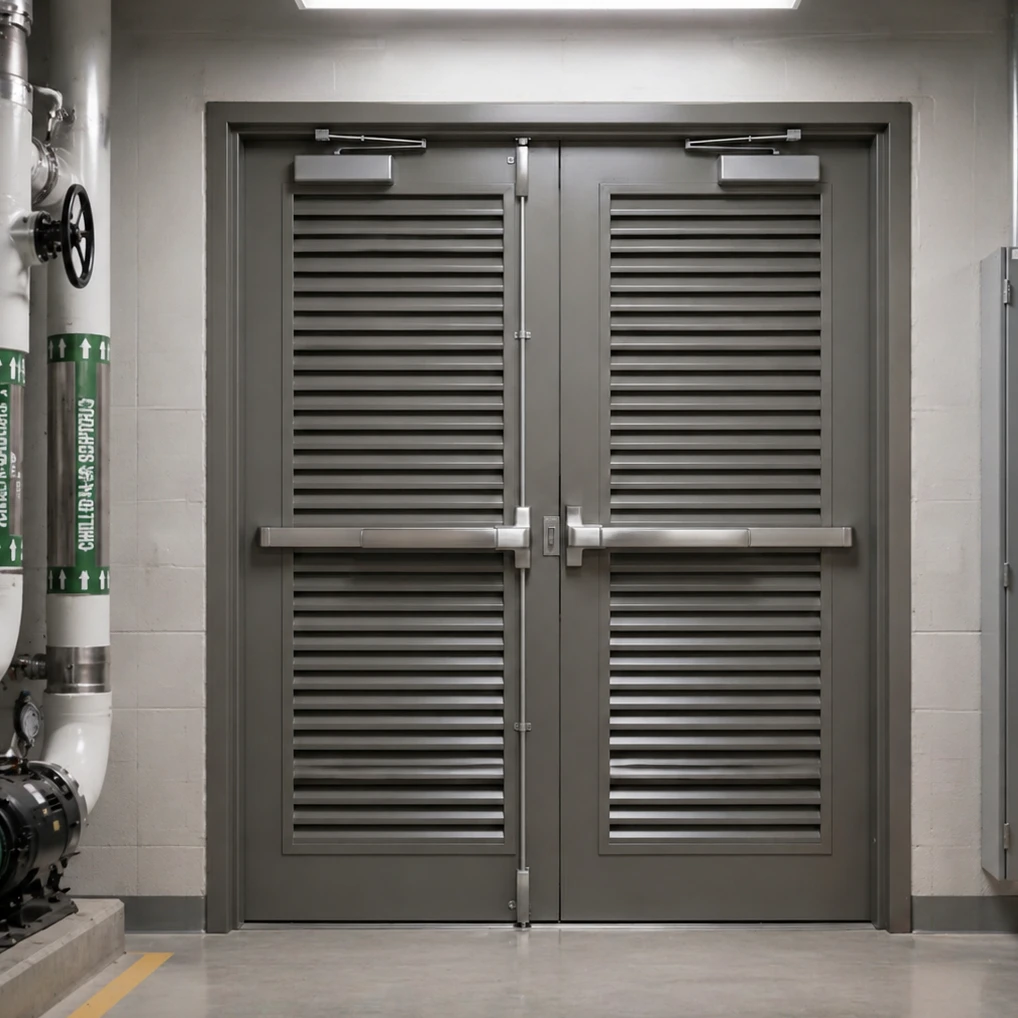

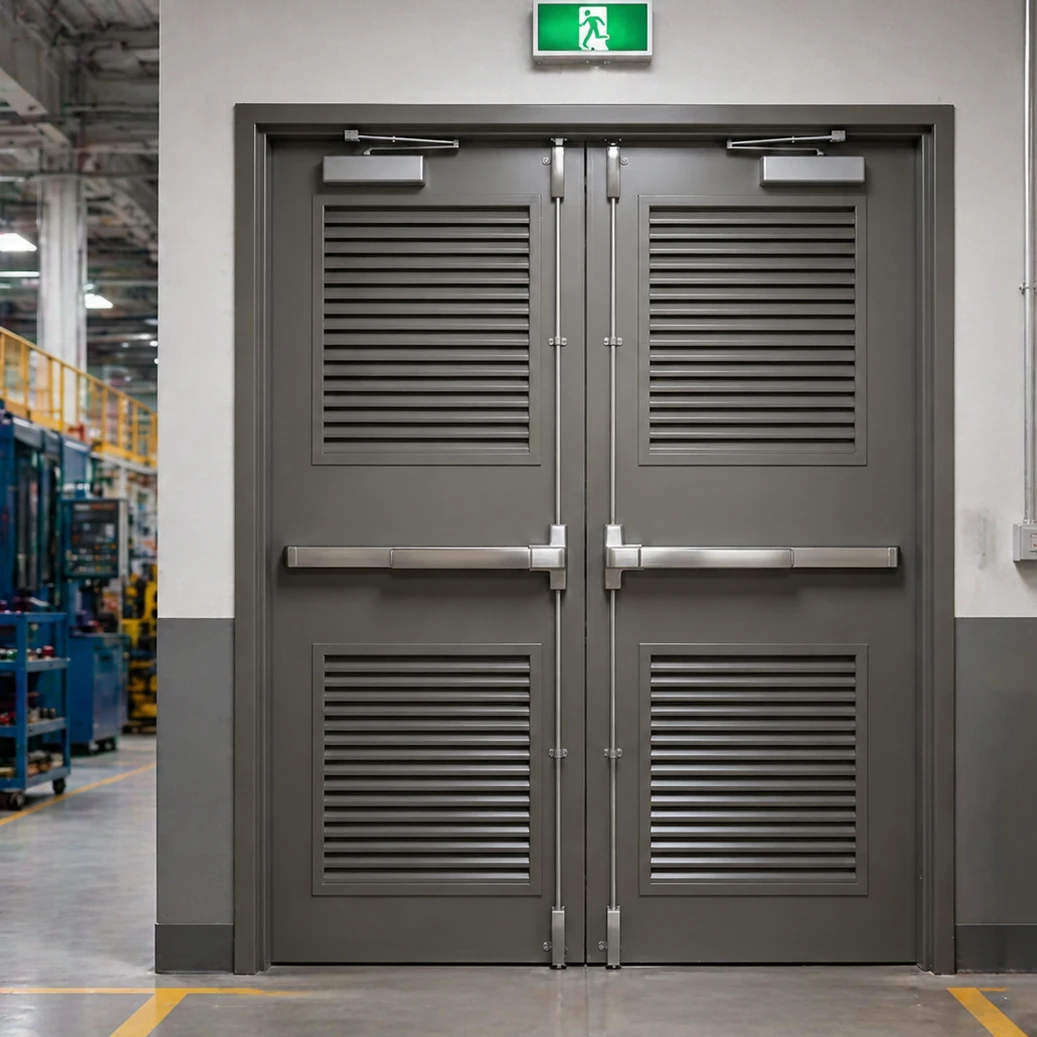

This fireproof steel full-louvered double exit door is specifically designed for environments that require efficient airflow, moisture control, and heat ventilation, while ensuring rapid emergency evacuation. Ideal for warehouses, factories, electrical rooms, and other industrial or commercial spaces, it provides both safety and functionality.
Constructed from heavy-duty galvanized steel, the door offers long-lasting durability and resistance to corrosion. Its full-louver design maximizes air circulation, helping to maintain optimal temperature and prevent moisture buildup. In the event of a fire, the louvers function as a smoke-blocking barrier, enhancing safety for occupants.
For emergency situations, the door is equipped with a panic push bar, allowing quick and effortless opening to ensure fast and safe escape. The double-door configuration provides wide clearance for the movement of personnel and equipment. This door is a reliable solution combining fire protection, ventilation, and emergency safety in one robust design.
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Honeycomb; PU; mineral core; acoustic wool |
| Finish | Poweder coating |
| Leaf thick | Std:45mm (customizable,Max:90mm) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Louver | NFR louver or Fireproof louver |
| Louver Blade | Inverted V blade,Flat blade,Z blade |
| Fire rate | Max 120min |
Right hand interior
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Left hand interior
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Right hand outside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Left hand outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Construction (Optional)
Normal louver door construction
Optional blade shape: Inverted V blade,z blade,flat blade or Adjustable Blade Louver
Fireproof louver door construction
Steel Flat blade embed with smoke seal; with stainless steel cover,fire rate up to 60 minutes
Door Frame Type (Optional)
Knock-down frame A
1.2-1.8mm Galvanized steel frame; Knock-down frame;
Knock-down frame B
1.2-1.8mm Galvanized steel frame; Knock-down frame;
Double rebate frame
1.2-1.8mm Galvanized steel frame; welded frame;
Double egress frame
1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door
Weld frame
1.2-1.8mm Galvanized steel frame; welded frame;
Standard Door Hardware
Push bar for double door A
SUS304 or Galvanized steel material; Fire rate up to 3 hours; with vertical top and bottom rod, with outer trim in SUS304 or zinc alloy
View More >>>
Push bar for double door B
Galvanized steel material; with vertical top and bottom rod, with steel outer trim
View More >>>
Push bar for double door C
Galvanized steel material; with vertical top and bottom rod, with steel outer trim
View More >>>
Butt Hinge
SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3 hours
View More >>>Popular Solid color
RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 9010 Pure White
RAL 9016 Traffic White
RAL 7035 Light Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 9011 Graphite Black
Read More Color >>>
-
