Homein Commercial steel full vented louver door

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    LMD09
  • Door Type.:

    Single door, swing door
  • Material

    Galvanized steel
  • Application:

    Electrical room, Utility Rooms
  • Color:

    Powder-coating, Grey
  • Design:

    FULL VENT LOUVER
  • Style:

    Modern
  • Lead Time:

    30 days
  • Suppliy ability:

    1500 sets per month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c BS476
  • Ref Price:

    260 USD

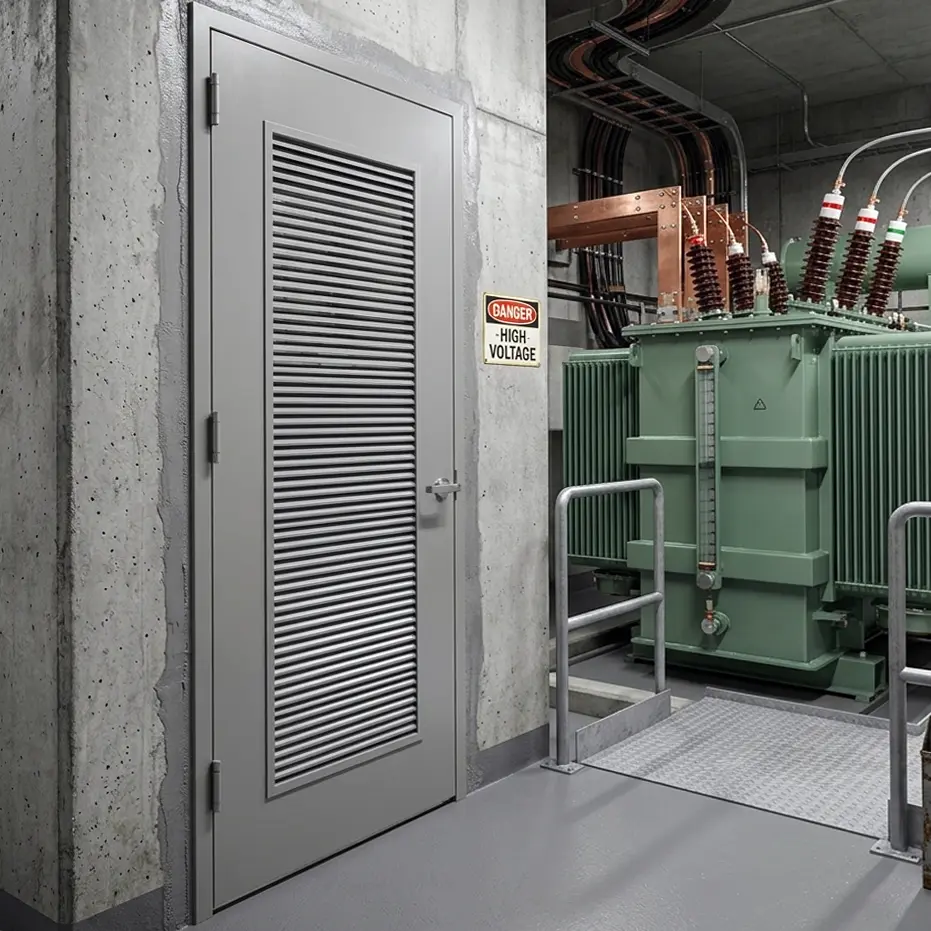

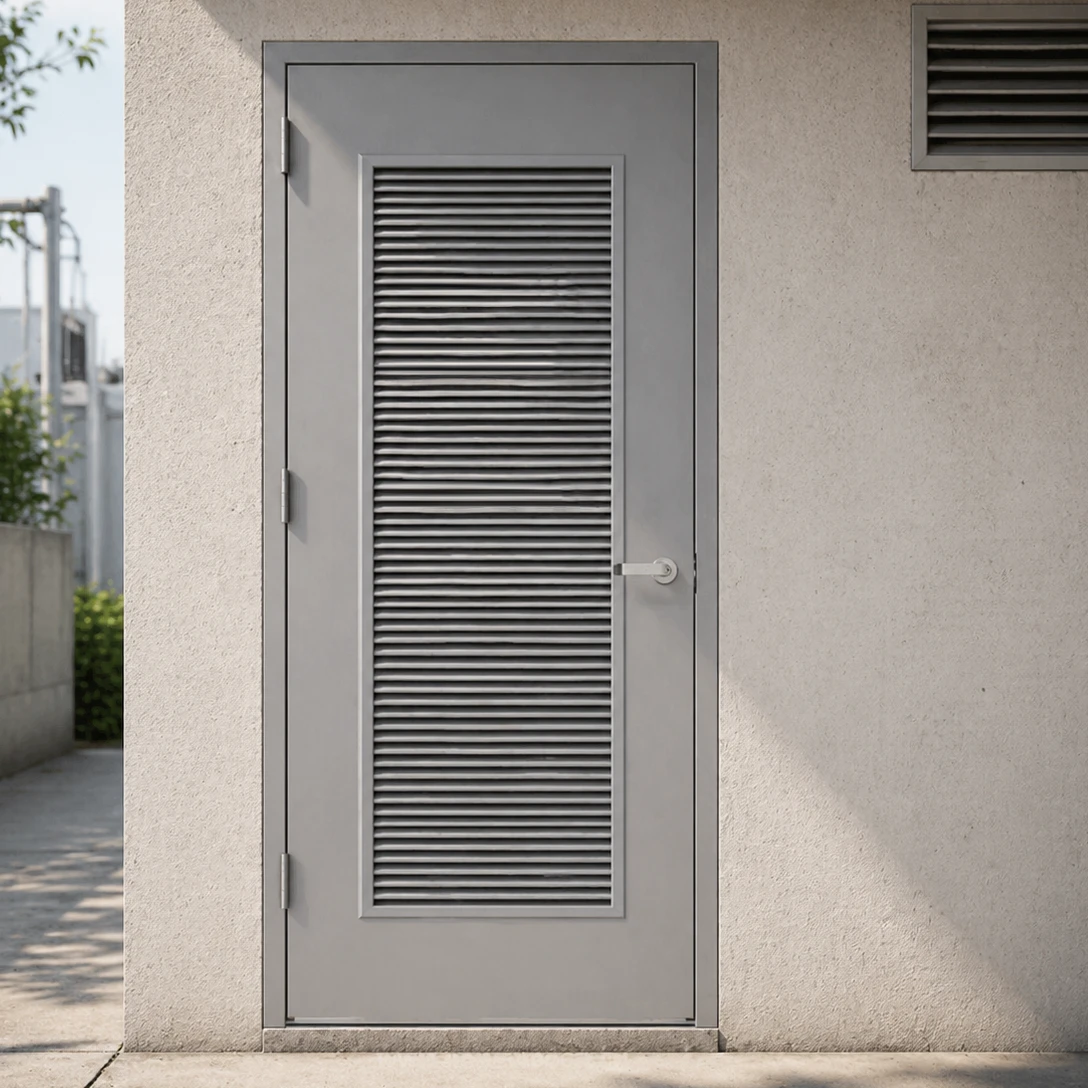

A steel full vented louver door is a sturdy and efficient door designed for maximum ventilation and durability. Made from galvanized steel, this metal full vented louver door features a louver insert that covers as much of the door surface as possible, allowing for optimal airflow in areas that require constant ventilation. The louvers can be made from either aluminum or steel, providing options based on durability and environmental needs.

There are several louver types available for this door. Fixed louvers offer continuous airflow with angled blades that block debris and maintain privacy. Adjustable blade louvers allow for control over the amount of ventilation by opening or closing the blades. For enhanced safety, fireproof and smoke-seal louvers are available, helping to prevent the spread of fire and smoke while maintaining airflow.

Ideal for commercial, industrial, and utility applications, the steel full vented louver door delivers excellent ventilation, strength, and long-lasting performance.



Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable,Max:90mm)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Louver NFR louver or Fireproof louver
Louver Blade Inverted V blade,Flat blade,Z blade
Fire rate Max 120min
door handing Right hand interior
Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

door handing Left hand interior
Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

door handing Right hand outside
Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

door handing Left hand outside
Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction (Optional)

door with Normal louver door construction
Normal louver door construction

Optional blade shape: Inverted V blade,z blade,flat blade or Adjustable Blade Louver

door with Fireproof louver door construction
Fireproof louver door construction

Steel Flat blade embed with smoke seal; with stainless steel cover,fire rate up to 60 minutes

Door Frame Type (Optional)

Knock-down frame A
Knock-down frame A

1.2-1.8mm Galvanized steel frame; Knock-down frame;

Knock-down frame B
Knock-down frame B

1.2-1.8mm Galvanized steel frame; Knock-down frame;

Double rebate frame
Double rebate frame

1.2-1.8mm Galvanized steel frame; welded frame;

Double egress frame
Double egress frame

1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door

Weld frame
Weld frame

1.2-1.8mm Galvanized steel frame; welded frame;

Standard Door Hardware

Push bar A (Standard)
Push bar A (Standard)

SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy

View More >>>
Push bar B
Push bar B

Galvanized steel material; with outer trim

View More >>>
Push bar C
Push bar C

SUS304 material; with outer trim

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Popular Solid color

RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 9010 Pure White
RAL 9016 Traffic White
RAL 7035 Light Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 9011 Graphite Black

Read More Color >>>
