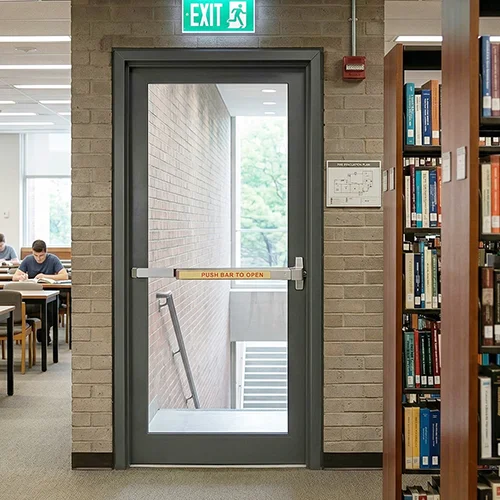

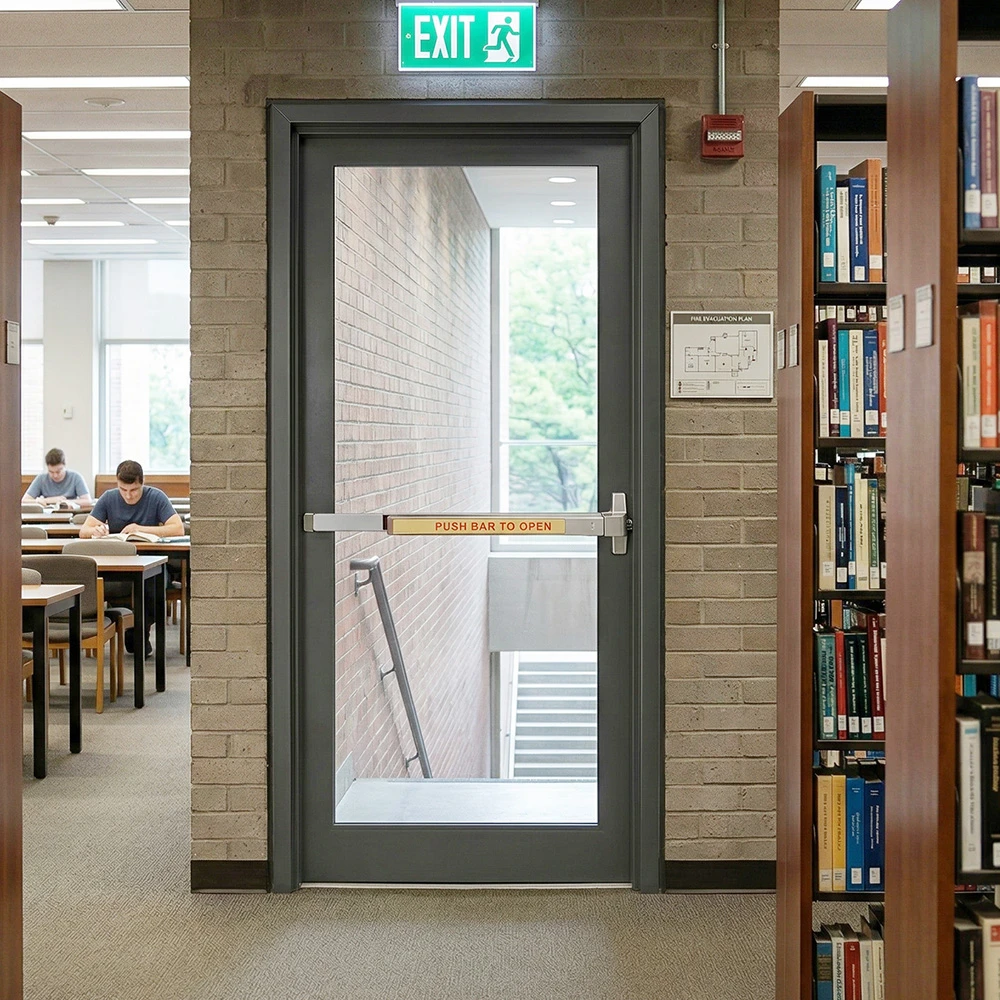

Homein Fireproof glass emergency exit door with push bar
MOQ: 1PCS
Custom Size
Fast Delivery
Quality Assurance
Item NO.:
PBM17Door Type.:
Single door, swing doorMaterial
Galvanized steel+glassApplication:
Emergency exitColor:
Grey paintDesign:
Full glass panel doorStyle:
ModernLead Time:
36 daysSuppliy ability:
1500 sets per monthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10cRef Price:
350 USD

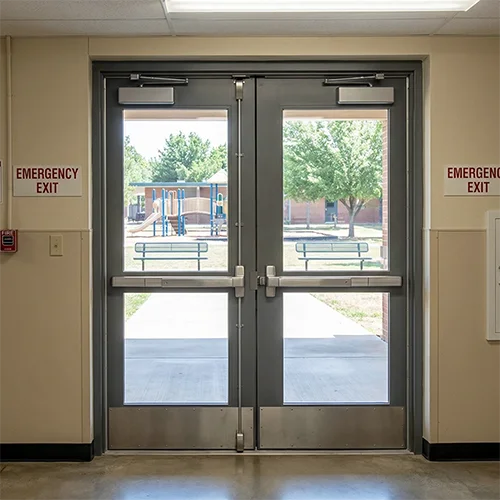

Steel fire exit double glass door with push bar

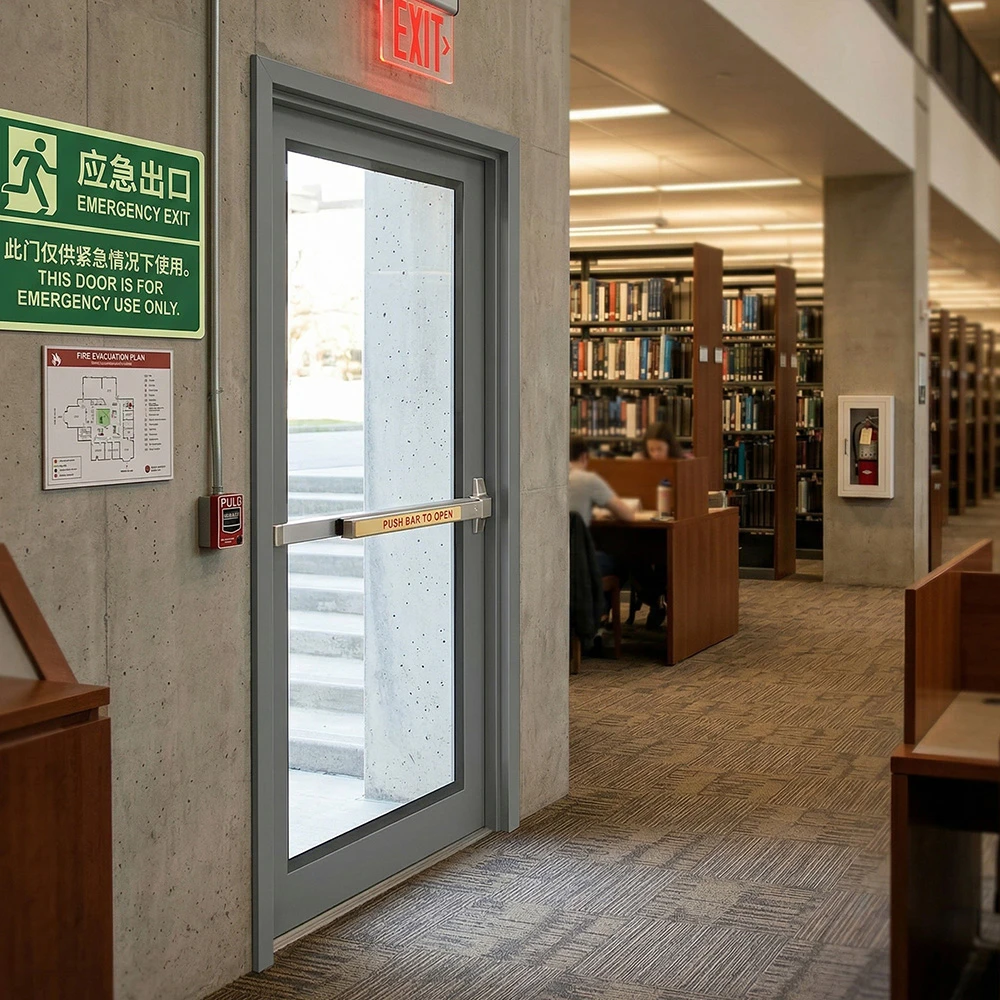

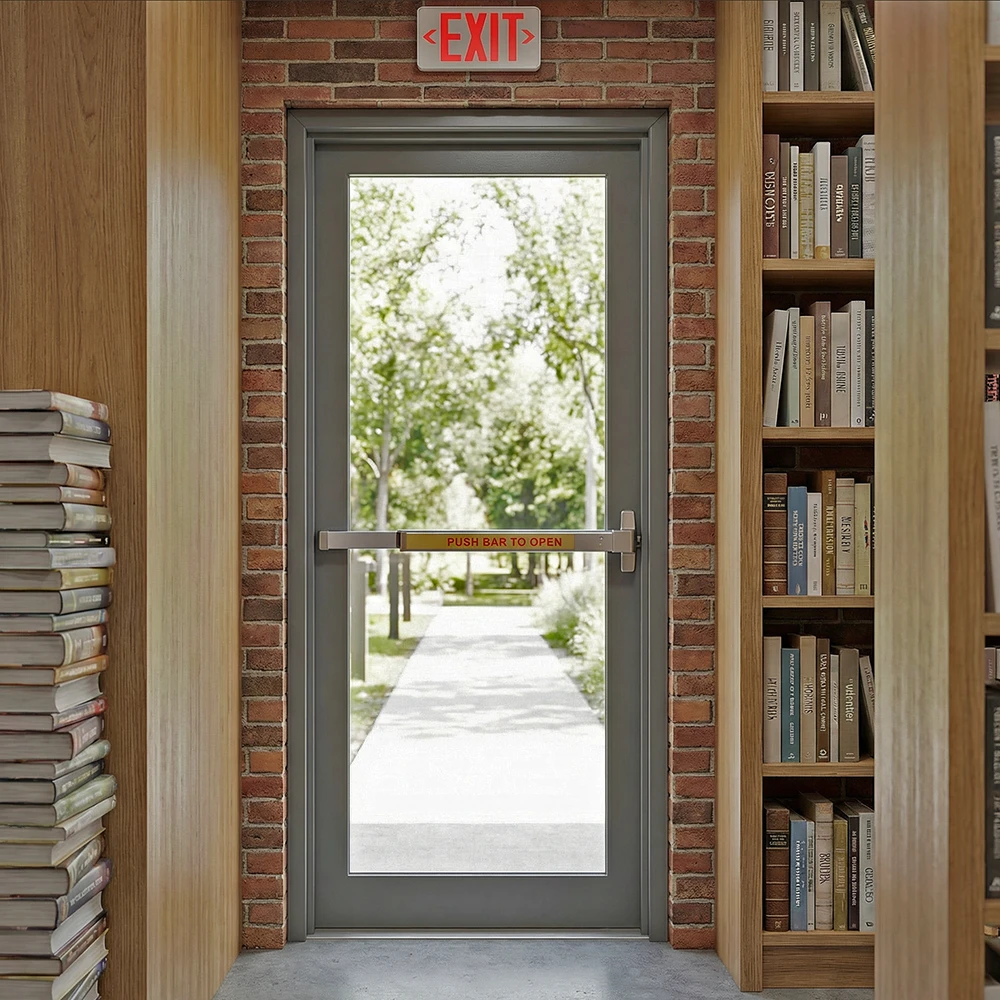

Glass emergency exit door is a steel-framed door with full glass panels, equipped with an exit device for quick egress during emergencies. It is specifically designed to public areas where Allow natural or artificial light to pass into the interior, brightening the space. Provide visibility to help prevent congestion and confusion during emergency situations.
Such doors are commonly used in high-traffic areas where safety, visibility, and quick evacuation are critical, including:
- Libraries
- Schools
- Showrooms
- Offices
- Airports
- Train stations
- Hopsital
Homin Steel glass emergency exit door made of galvanzied steel + fireproof glass, Fire rate up to 3 hours, ul certified, max size 1220*2440mm
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Mineral core; acoustic wool |
| Finish | Powder coating |
| Leaf thick | Std:45mm (customizable) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Hardware | Push bar & trim; Hinge; Closer |
| STC | STC45 STC56 |
| Fire rate | 120 minutes, 180 minutes |
Right hand interior
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Left hand interior
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Right hand outside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Left hand outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Construction (Optional)
Aluminum Hollow steel door
45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Aluminum Honeycomb paper core
Hollow core steel door
45mm or 50mm Thk; 0.8 or 1.0 galvanized steel panel; Honeycomb paper core
Door Frame Type (Optional)
Knock-down frame A
1.2-1.8mm Galvanized steel frame; Knock-down frame;
Knock-down frame B
1.2-1.8mm Galvanized steel frame; Knock-down frame;
Double rebate frame
1.2-1.8mm Galvanized steel frame; welded frame;
Double egress frame
1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door
Weld frame
1.2-1.8mm Galvanized steel frame; welded frame;
Standard Door Hardware
Push bar A (Standard)
SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy
View More >>>
Butt Hinge
SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours
View More >>>Glass lite (Optional)
Laminated fire glass
Laminated fire glass 20~40mm thick, standard is 25mm,Fire-resistant up to 180 minutes
Fireproof Wired glass
Thick 6mm; 90min fire rated; Classified and labeled
Schott FR clear glass
Thick 5mm; 2 hour fire rated; Classified and labeled
Popular Solid color
RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 9010 Pure White
RAL 9016 Traffic White
RAL 7035 Light Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 9011 Graphite Black
Read More Color >>>
-
