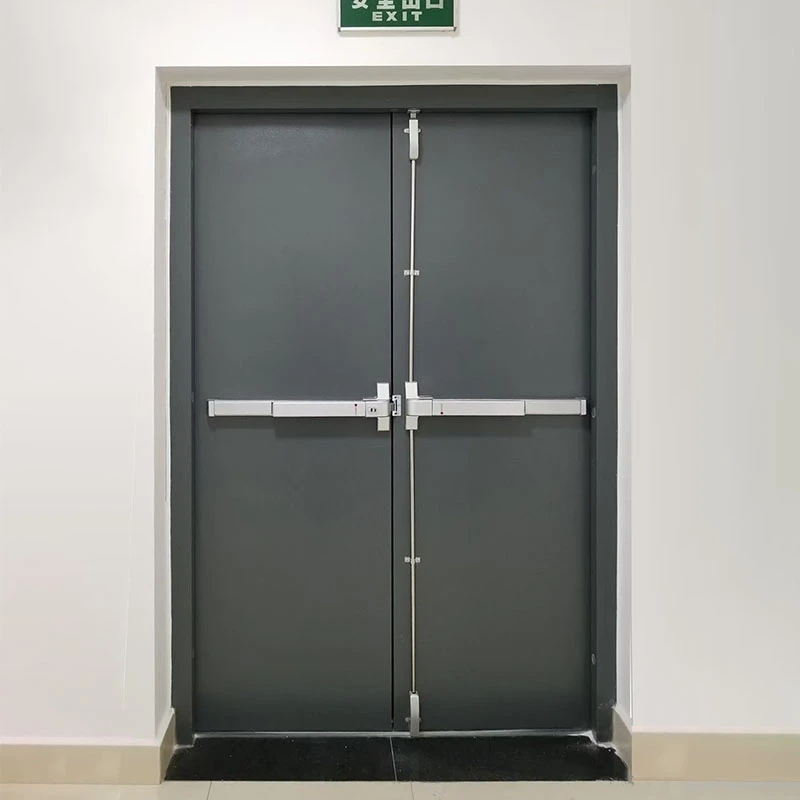

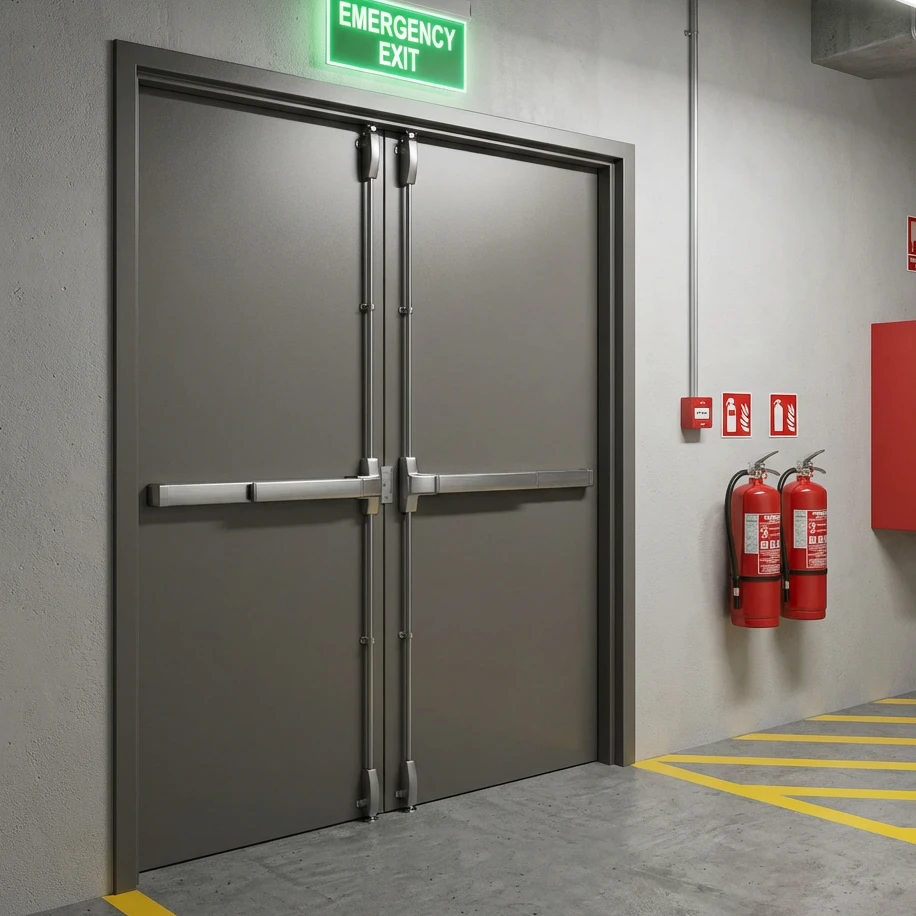

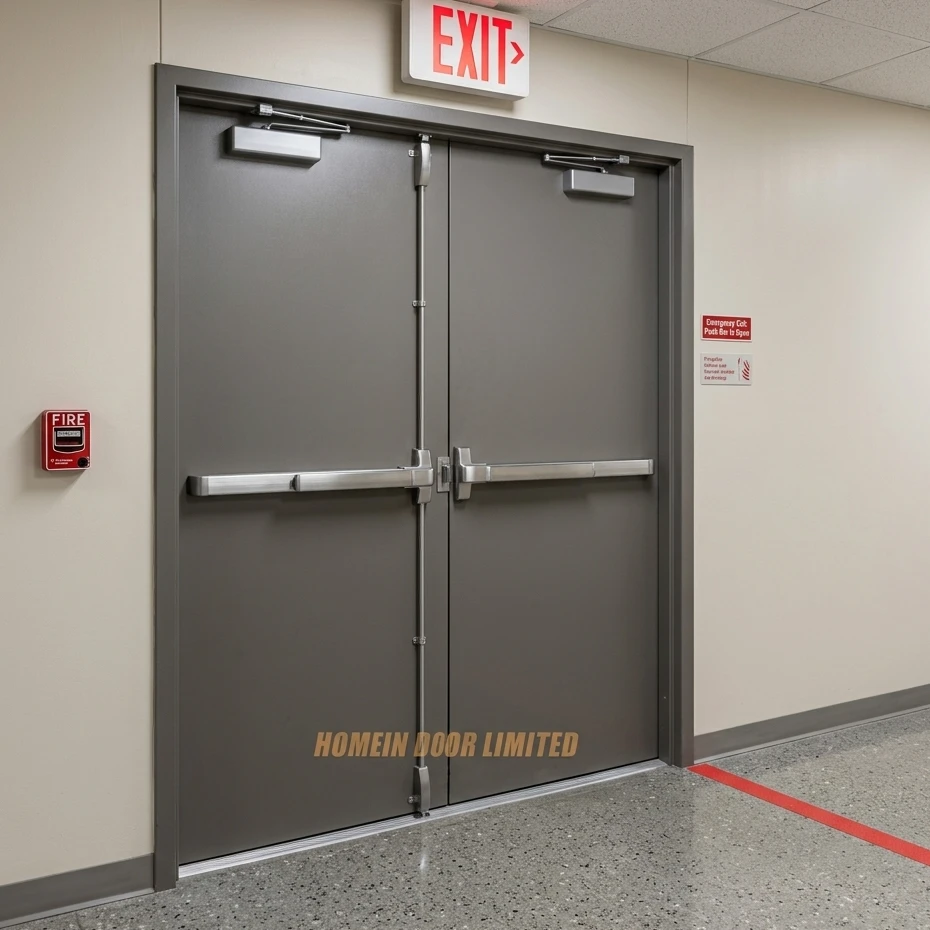

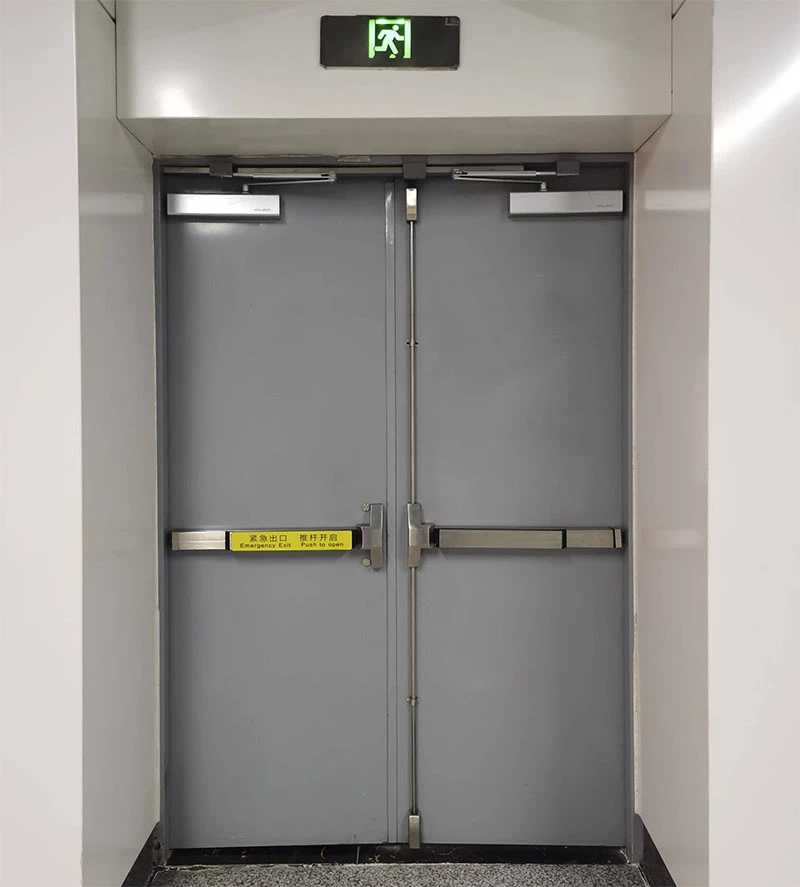

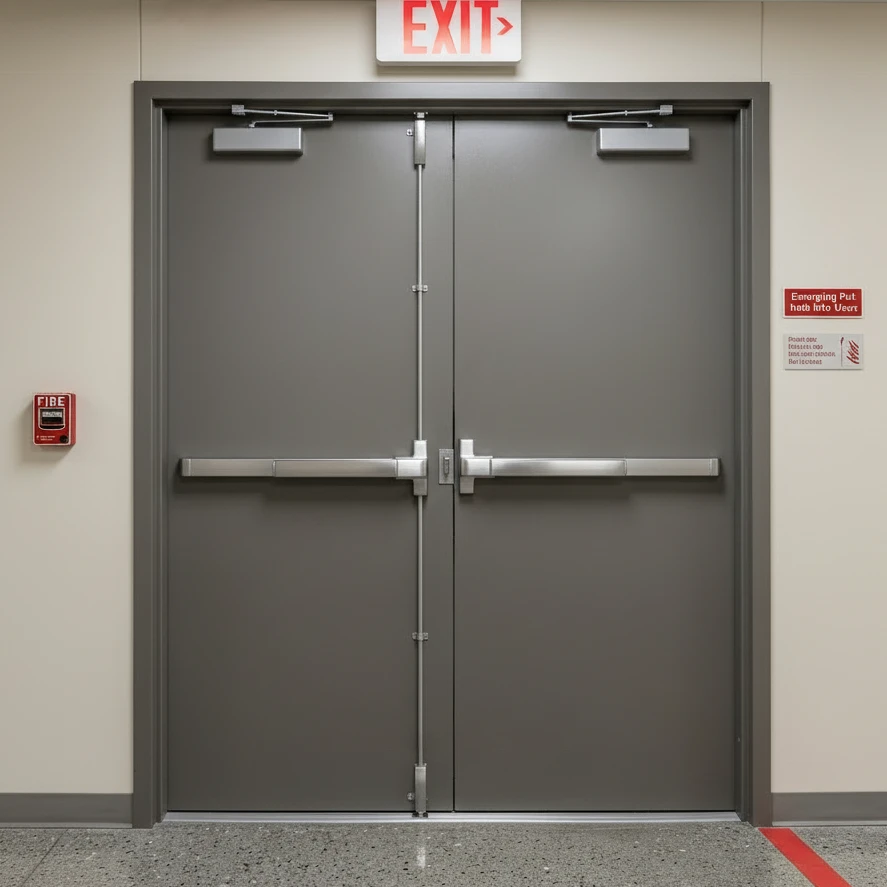

UL listed 3 hour steel fire rated double emergency exit door

Homein UL listed 3 hour steel fire rated double emergency exit door

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
PBM23
Door Type.:
Double door, swing door
Material
Galvanized steel
Application:
Emergency exit
Color:
Powder-coating,Grey
Design:
Flush door
Style:
Modern
Lead Time:
25 days
Suppliy ability:
1500 Sets per Month
Place of Origin:
Yongkang city, China
Certificate:
UL10C
Ref Price:
400 USD

Inquiry now

Why choose double emergency exit door

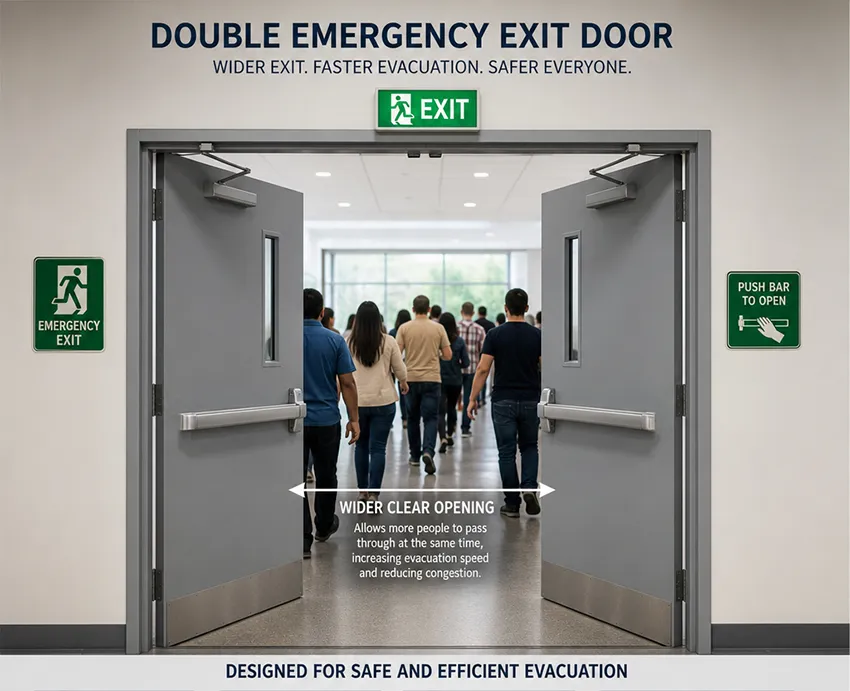

A double emergency exit door is designed to improve evacuation efficiency by providing a wider and more accessible escape route during emergencies. It is ideal for high-traffic commercial and public buildings such as schools, libraries, shopping malls, hospitals, train stations, and airports.

The wider clear opening allows more people to pass through at the same time, helping increase evacuation speed and reduce crowding, pushing, and bottlenecks. Both door leaves are equipped with UL-certified panic push bars, allowing occupants to open the doors quickly and easily with a simple push during an emergency.

Relationship Between Double Emergency Exit Door Width, People Flow and Escape Speed

This double emergency exit door is fully customizable and available in a wide range of dimensions, with a maximum overall size of 2440 mm in width and 2440 mm in height. The wide clear opening provided by the double-door configuration supports efficient evacuation in high-traffic public and commercial areas. It allows multiple occupants to pass through simultaneously, helping reduce congestion, pushing, and bottlenecks during an emergency. In general, increasing the available clear opening width increases pedestrian flow capacity and can shorten the total evacuation time. The following data illustrates the relationship between Effective door width/ Maximum flow /People per minute/ Time for 100 people.

Effective door width	Type	Maximum flow	People per minute	Time for 100 people
0.80 m	single door	1.04 people/s	62 people/min	96 sec
0.90 m	single door	1.17 people/s	70 people/min	85 sec
1.00 m	single door	1.30 people/s	78 people/min	77 sec
1.20 m	single door	1.56 people/s	94 people/min	64 sec
1.50 m	double door	1.95 people/s	117 people/min	51 sec
1.80 m	double door	2.34 people/s	140 people/min	43 sec
2.00 m	double door	2.60 people/s	156 people/min	38 sec

Fire rate of double emergency exit door

Constructed from high-quality galvanized steel, with a fireproof mineral core, this double exit door is built to withstand fire and provide reliable protection. it offers fire integrity for up to 3 hours and fire insulation for up to 2 hours, ensuring maximum safety in critical situations. with smoke seal all around door to blocking smoke spead when on fire, The door is UL10c, en1634,bs476 certified, having undergone rigorous testing by Intertek to meet stringent safety standards.

Fire rate of double emergency exit door hardware

Push bar

Both door leaves are equipped with UL-certified push bars for easy operation during emergencies. The inactive leaf includes top and bottom rods for secure locking when closed.

Closer

Each door leaf is equipped with a hydraulic door closer. After the door is opened by escaped people, the closer automatically returns the leaf to the closed position. This helps maintain the integrity of the fire-rated opening, limits the spread of fire and smoke, and contains them within the designated fire compartment.

Hinge

The door is equipped with SUS304 stainless steel, UL-certified, commercial-grade heavy-duty butt hinges. These hinges provide excellent corrosion resistance, durability, and reliable performance under frequent daily use.

Door material	0.8~1.2mm Galvanized steel
Frame material	1.2~1.8mm Galvanized steel
Door core	Mineral core; acoustic wool
Finish	Powder coating
Leaf thick	Std:45mm (customizable)
Width	Std:3ft (customizable Max: 1250mm single leaf)
Height	Std:7ft (customizable Max: 4000mm)
Hardware	Push bar & trim; Hinge; Closer
STC	STC45 STC56
Fire rate	120 minutes, 180 minutes

Right hand active interior

Stand at outside; right leaf active; lock at righ leaf, door swing to inside

Left hand active interior

Stand at outside; left leaf active; lock at left leaf, door swing to inside

Right hand active outside

Stand at outside; right leaf active; lock at right leaf, door swing to outside

Left hand active outside

Stand at outside; left leaf active; lock at left leaf, door swing to outside

Door Construction

Isolation and Fireproof Exit door

50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof mineral core; Graphite smoke seal; Fire rate 2 hours, isolation 1 hour

Acoustic and Fireproof Exit door

90mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, fireproof and soundproof core; smoke seal+acoustic seal; Fire rate 2 hour, STC56

Fireproof Exit door

45mm or 50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof honeycomb paper core; smoke seal all round; Fire rate 3 hours

Door Frame Type
