steel emergency staircase door with push bar steel emergency staircase door with push bar steel emergency staircase door with push bar

Homein steel emergency staircase door with push bar

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    PMB-41
  • Door Type.:

    Single door, swing door
  • Material

    Galvanized steel+glass
  • Application:

    Emergency staircase
  • Color:

    Powder-coating, black
  • Design:

    Flush door with vision panel
  • Style:

    Modern
  • Lead Time:

    20 days
  • Suppliy ability:

    2000 sets per month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c EN1634
  • Ref Price:

    250 USD

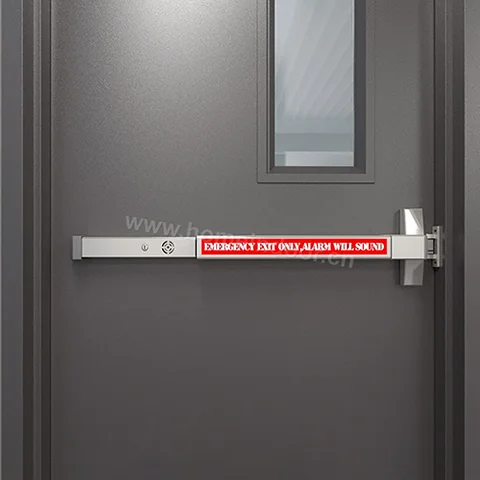

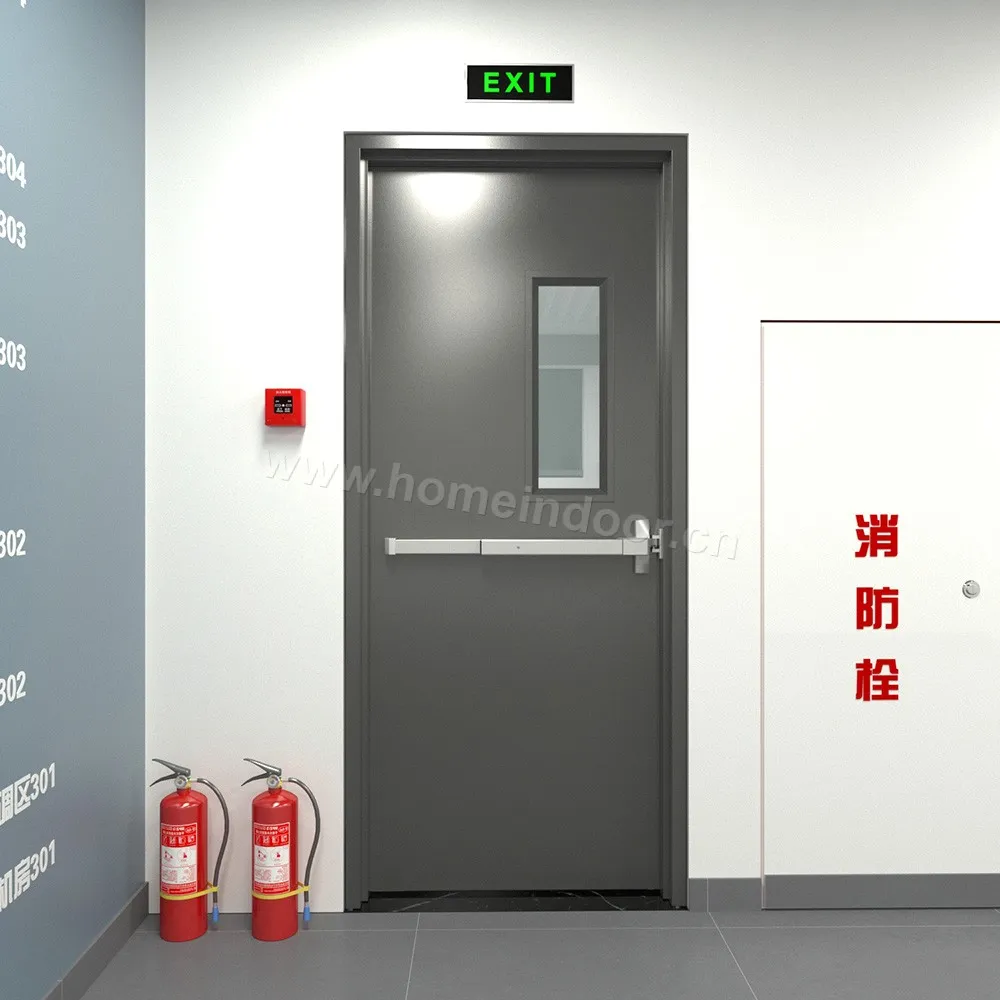

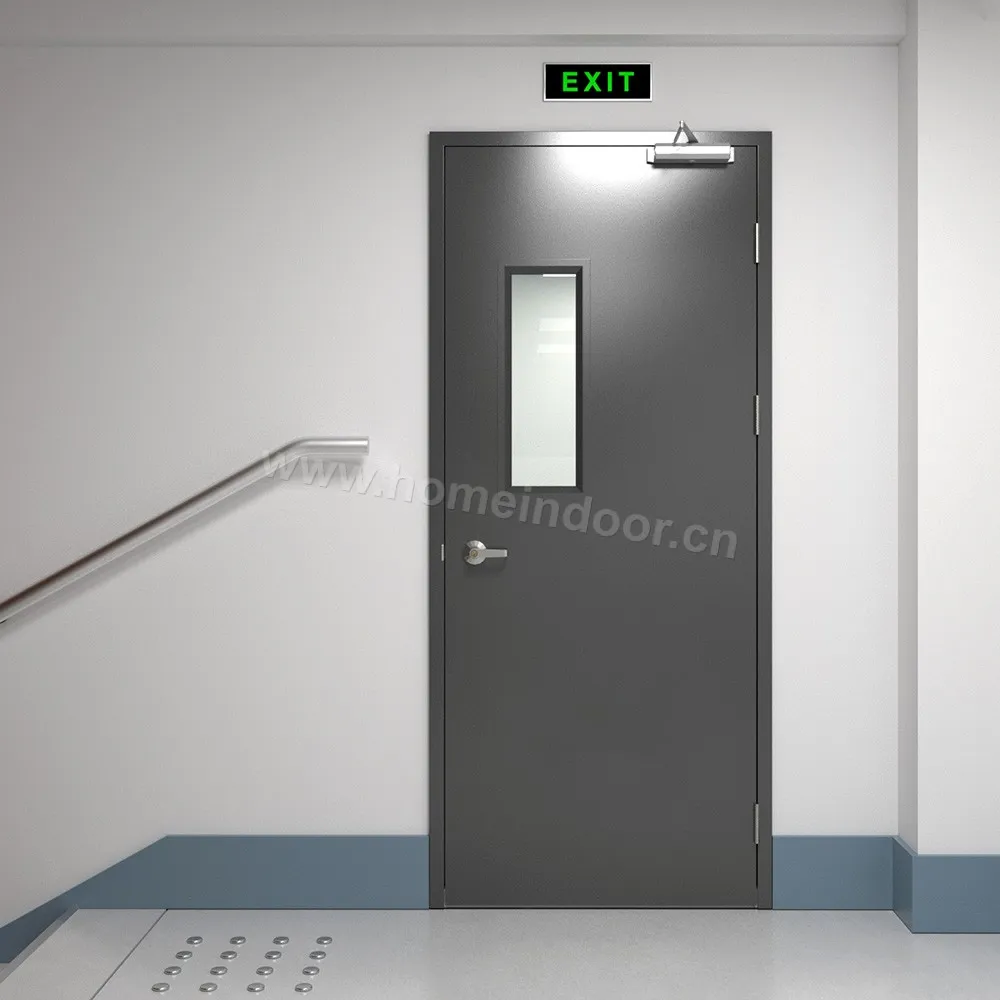

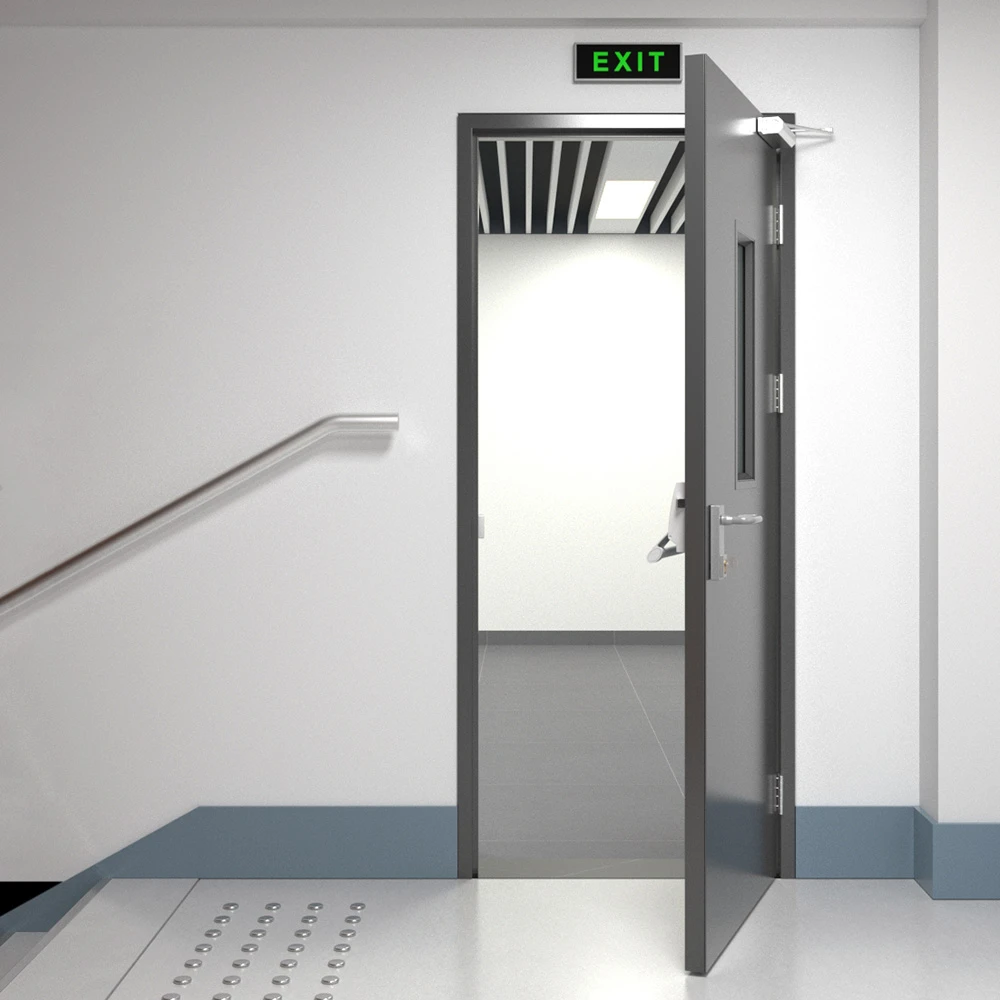

Steel Emergency Staircase Door with Push Bar

Our steel emergency staircase door is expertly designed for emergency staircases, providing maximum safety, durability, and fire protection. Constructed from galvanized steel with a mineral core, this door offers outstanding strength, corrosion resistance, and reliable fire resistance, making it ideal for commercial, industrial, and residential buildings requiring secure emergency exits.



Certified to meet both UL and EN1634 fire safety standards, this door is rigorously tested and fire rated for up to 3 hours, ensuring it effectively contains fire and smoke, helping to protect occupants and limit damage during emergencies. This certification guarantees compliance with international building codes and fire safety regulations.



Equipped with a user-friendly push bar (panic bar) on the inside, the door enables quick and easy exit for safe evacuation during urgent situations. The push bar design allows occupants to simply push the horizontal bar to instantly unlatch the door—no keys or complicated handles required, ensuring fast, hassle-free egress.



On the outside, the door features a secure outer trim with key lock, providing controlled access to authorized personnel while maintaining security. The inclusion of a high-quality door closer ensures the door automatically closes after use, maintaining the fire barrier’s integrity and preventing smoke or fire from spreading through stairwells.



Key features include:

  • Fire rated up to 3 hours, tested under UL and EN1634 standards
  • Galvanized steel construction with mineral core for superior strength and fire resistance
  • Push bar for quick emergency exit from inside
  • Outer trim with key lock for controlled access from outside
  • Reliable door closer to ensure automatic closing and fire containment
  • Corrosion-resistant finish suitable for both indoor and outdoor staircases



This steel emergency staircase door is perfect for new installations or upgrades in schools, hospitals, office buildings, and industrial facilities. It offers a robust, code-compliant solution to safeguard lives and property during emergencies.



Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Mineral core; acoustic wool
Finish Powder coating
Leaf thick Std:45mm (customizable)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Hardware Push bar & trim; Hinge; Closer
STC STC45 STC56
Fire rate 120 minutes, 180 minutes
door handing Right hand interior
Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

door handing Left hand interior
Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

door handing Right hand outside
Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

door handing Left hand outside
Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction (Optional)

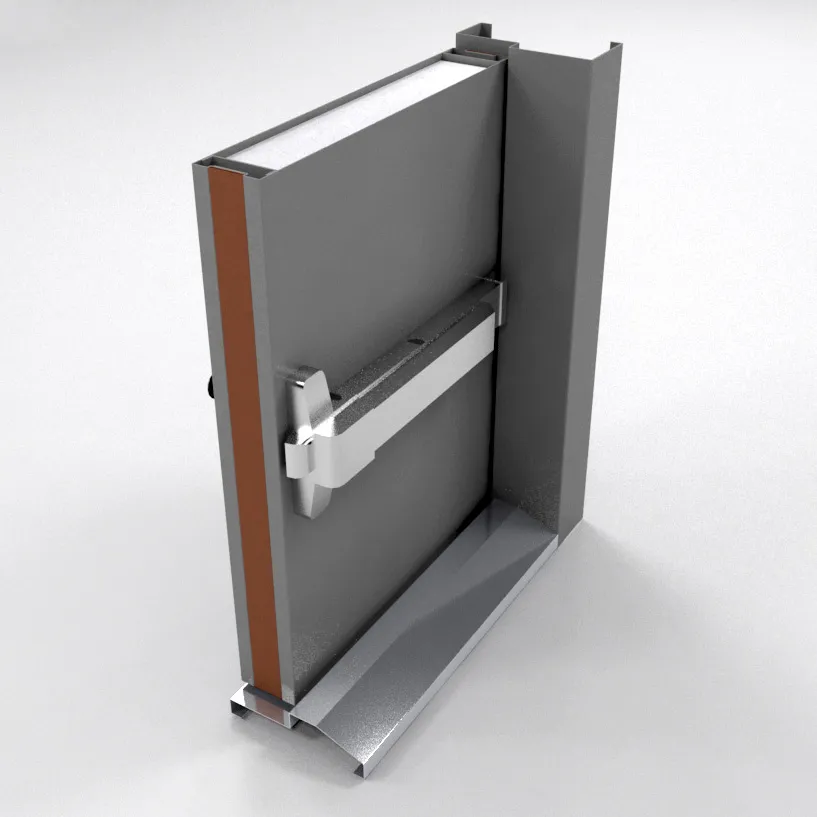

door with Isolation and Fireproof Exit door
Isolation and Fireproof Exit door

50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof mineral core; Graphite smoke seal; Fire rate 2 hours, isolation 1 hour

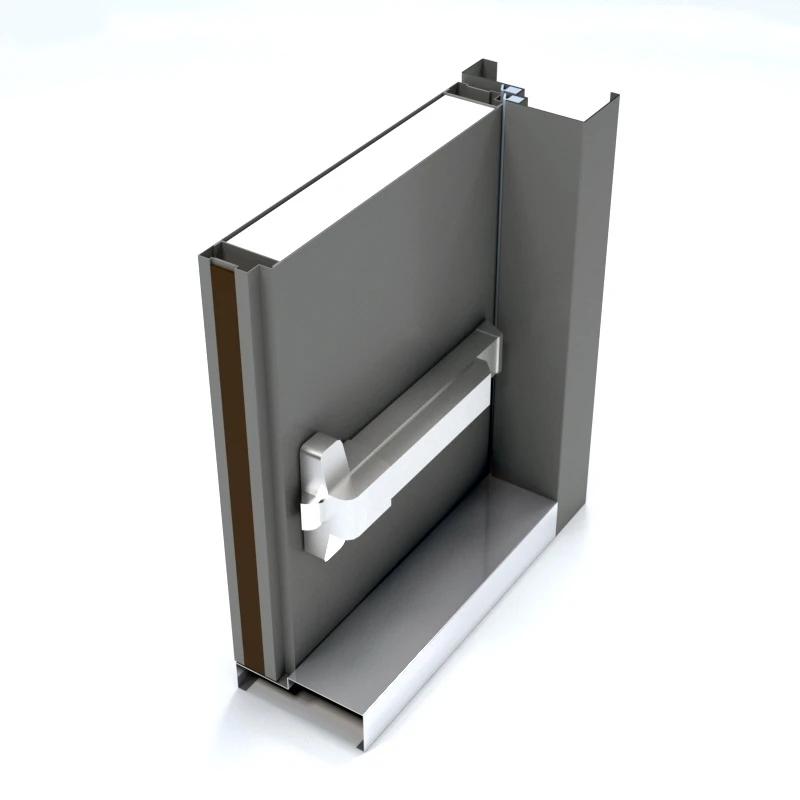

door with Acoustic and Fireproof Exit door
Acoustic and Fireproof Exit door

90mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, fireproof and soundproof core; smoke seal+acoustic seal; Fire rate 2 hour, STC56

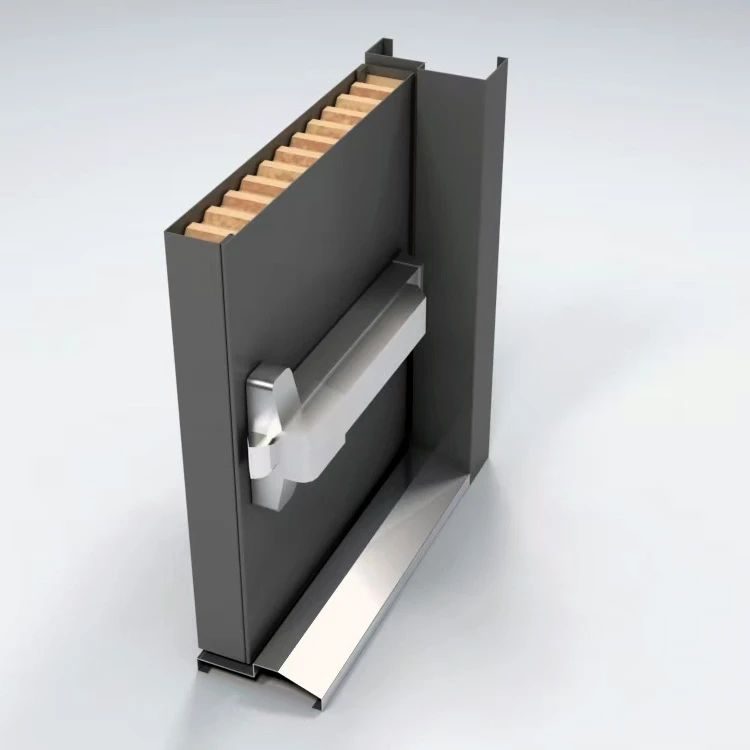

door with Fireproof Exit door
Fireproof Exit door

45mm or 50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof honeycomb paper core; smoke seal all round; Fire rate 3 hours

Standard Door Hardware

Push bar A (Standard)
Push bar A (Standard)

SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy

View More >>>

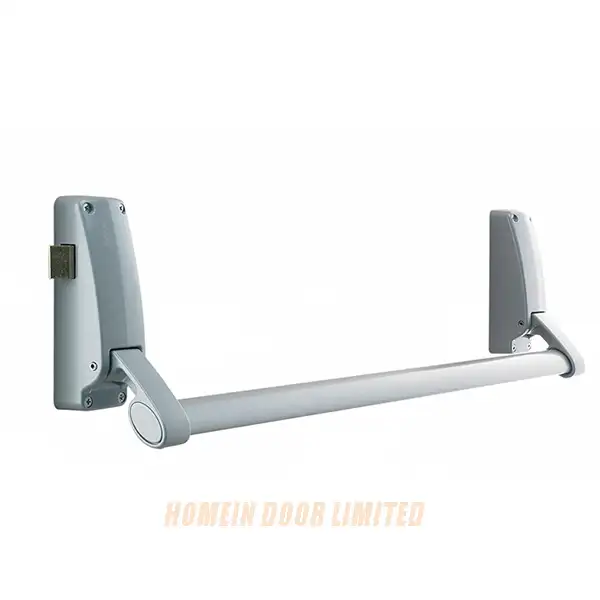

Push bar B
Push bar B

Galvanized steel material; with outer trim

View More >>>

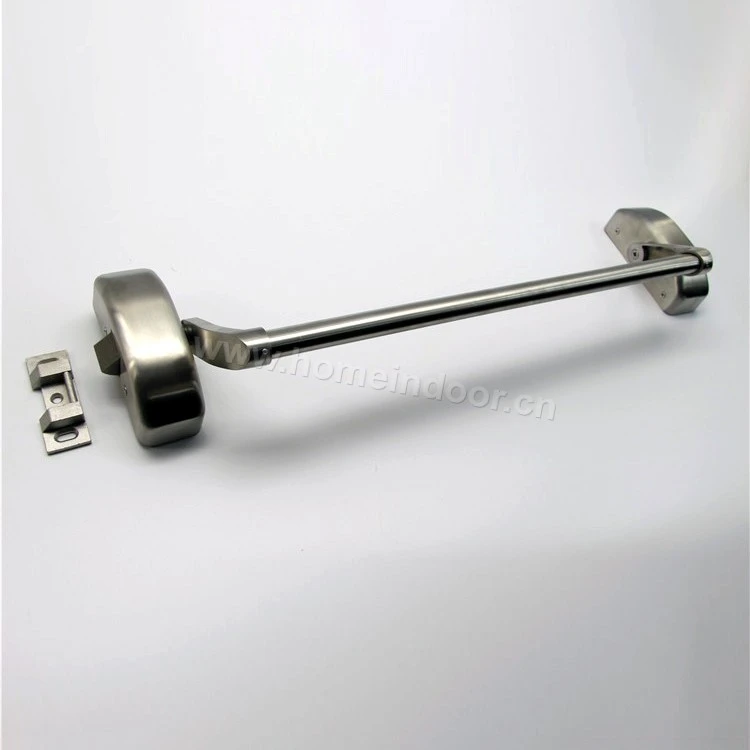

Push bar C
Push bar C

SUS304 material; with outer trim

View More >>>

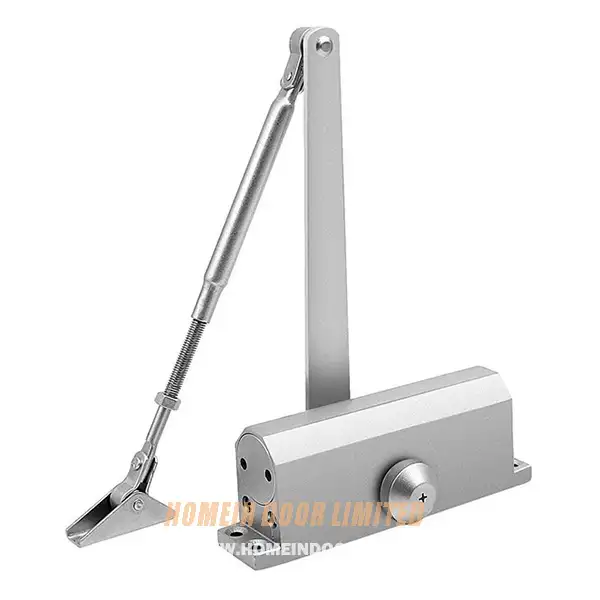

Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>

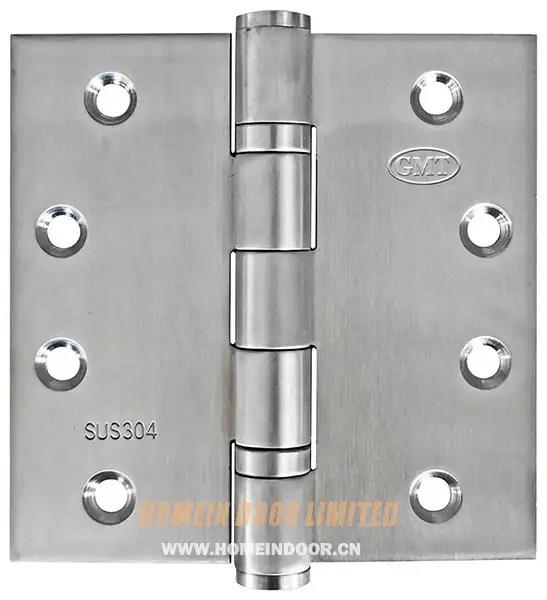

Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>

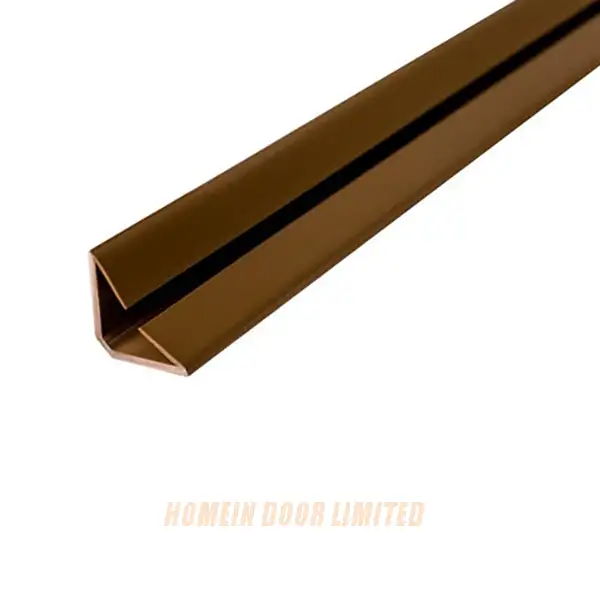

Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Glass lite (Optional)

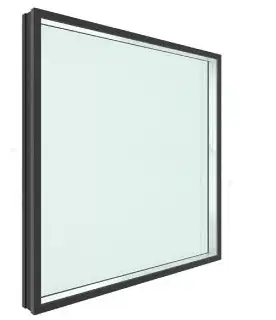

Laminated fire glass
Laminated fire glass

Laminated fire glass 20~40mm thick, standard is 25mm,Fire-resistant up to 180 minutes

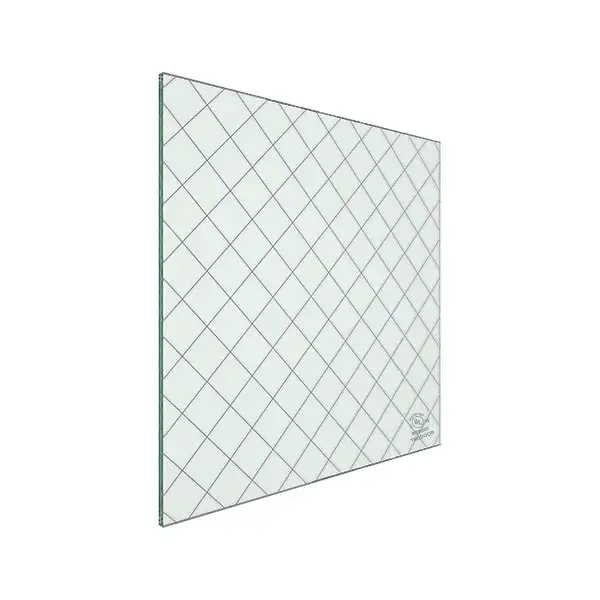

Fireproof Wired glass
Fireproof Wired glass

Thick 6mm; 90min fire rated; Classified and labeled

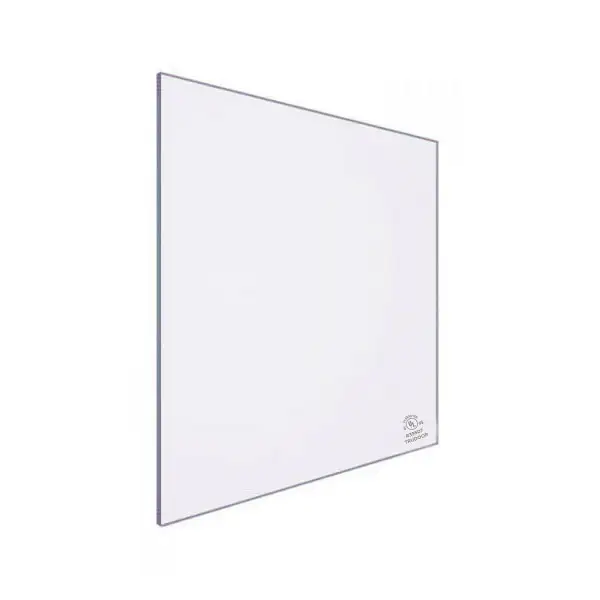

Schott FR clear glass
Schott FR clear glass

Thick 5mm; 2 hour fire rated; Classified and labeled

Popular Solid color

RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 9010 Pure White
RAL 9016 Traffic White
RAL 7035 Light Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 9011 Graphite Black

Read More Color >>>
