UL listed steel emergency exit door with louver

Homein UL listed steel emergency exit door with louver

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
PBM07
Door Type.:
Single door, swing door
Material
Galvanized steel + Mineral core
Application:
Emergency exit
Color:
Powder-coating,Grey
Design:
Flush panel with glass & louver
Style:
Modern Commerical
Lead Time:
25 days
Suppliy ability:
1500 Sets per Month
Place of Origin:
Yongkang city, China
Certificate:
UL BS476
Ref Price:
300 USD

Inquiry now

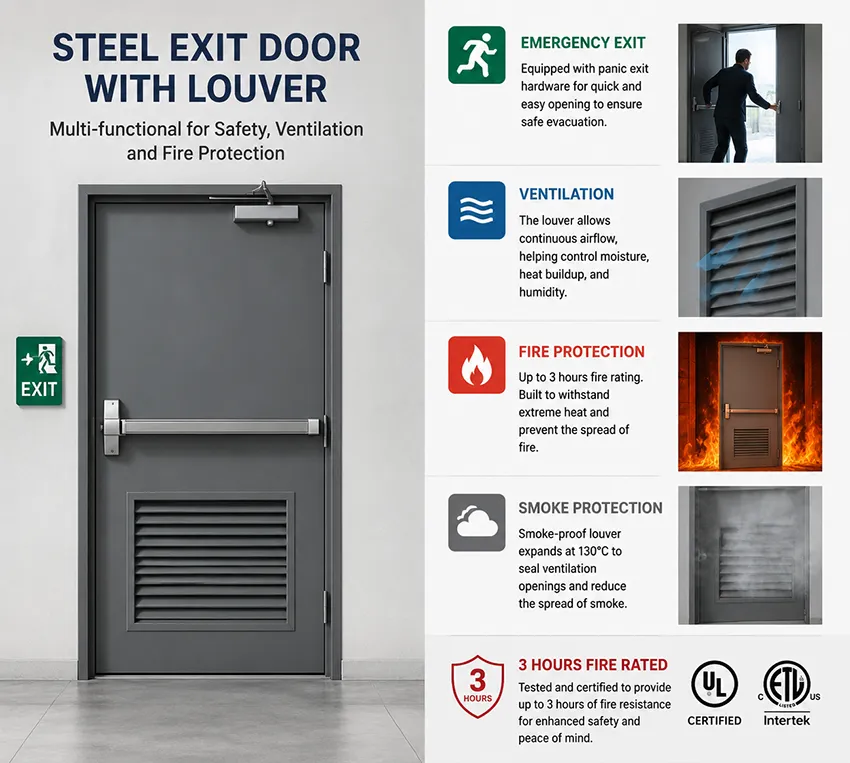

Why choose steel exit door with louver

A steel exit door with a louver is a multifunctional solution that combines emergency evacuation, fire and smoke protection, ventilation. During an emergency, the panic exit hardware allows occupants to open the door quickly for safe evacuation. Under normal conditions, the louver supports continuous airflow, helping control moisture, heat buildup, and humidity. For when on fire, This door can reach 3 hours fire rate, and its fireproof and smoke-proof louver can expand at 130℃ temperatures to help seal the ventilation openings and reduce the spread of flames and smoke.

Steel exit door with louver construction

This emergency exit door with louver is constructed from premium galvanized steel and fireproof mineral core, offering fire integrity of up to 3 hours and fire insulation for up to 2 hours. Certified by UL and tested by Intertek, it meets rigorous fire safety standards. Equipped with a panic push bar for fast and easy egress, this steel exit door also includes a fire louver insert. This special louver allows airflow and moisture ventilation under normal conditions, when one fire, heat smoke will trigger intumecent seal to expand to fill up gap between blades for blocking fire and smoke spead

Steel exit door with louver application

A steel exit door with louver is widely used in commercial and industrial areas where fire protection, fast emergency evacuation, and daily airflow are required. It is ideal for mechanical rooms, electrical rooms, utility rooms, boiler rooms, equipment rooms, warehouses, and factory workshops.

Louver size and location

The louver size and location can be customized according to the required airflow, ventilation capacity, moisture control, and door dimensions. The louver can be installed at the bottom, top, or center of the door, with bottom louvers being the most common choice for mechanical rooms, electrical rooms, and utility areas. Full-width, half-width, and custom-sized louvers are available to meet different project requirements.

Door material	0.8~1.2mm Galvanized steel
Frame material	1.2~1.8mm Galvanized steel
Door core	Mineral core; acoustic wool
Finish	Powder coating
Leaf thick	Std:45mm (customizable)
Width	Std:3ft (customizable Max: 1250mm single leaf)
Height	Std:7ft (customizable Max: 4000mm)
Hardware	Push bar & trim; Hinge; Closer
STC	STC45 STC56
Fire rate	120 minutes, 180 minutes

Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction

Isolation and Fireproof Exit door

50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof mineral core; Graphite smoke seal; Fire rate 2 hours, isolation 1 hour

Acoustic and Fireproof Exit door

90mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, fireproof and soundproof core; smoke seal+acoustic seal; Fire rate 2 hour, STC56

Fireproof Exit door

45mm or 50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof honeycomb paper core; smoke seal all round; Fire rate 3 hours

Door Frame Type
