UL listed steel emergency exit door with bottom louver

Homein UL listed steel emergency exit door with bottom louver

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance

Item NO.:
PBM07
Door Type.:
Single door, swing door
Material
Galvanized steel + Mineral core
Application:
Emergency exit
Color:
Powder-coating,Grey
Design:
Flush panel with glass & louver
Style:
Modern Commerical
Lead Time:
25 days
Suppliy ability:
1500 Sets per Month
Place of Origin:
Yongkang city, China
Certificate:
UL BS476
Ref Price:
300 USD

Inquiry now

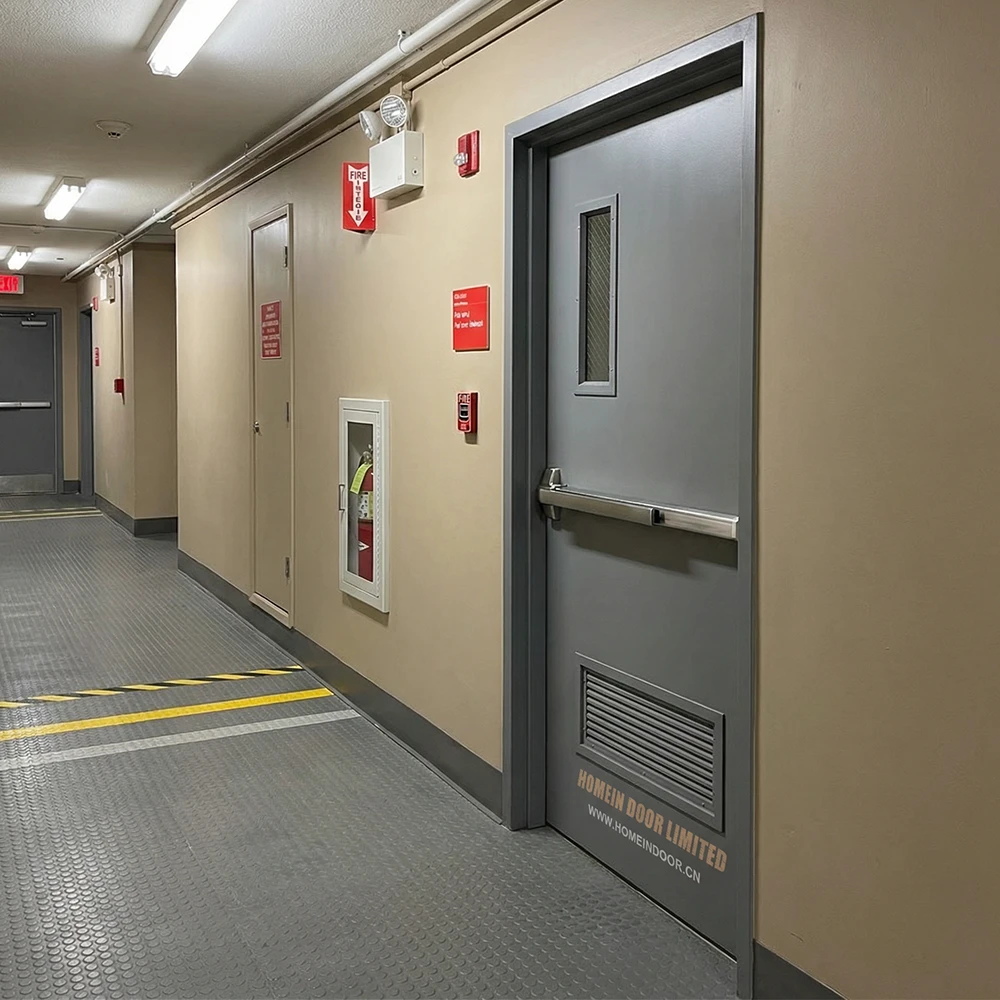

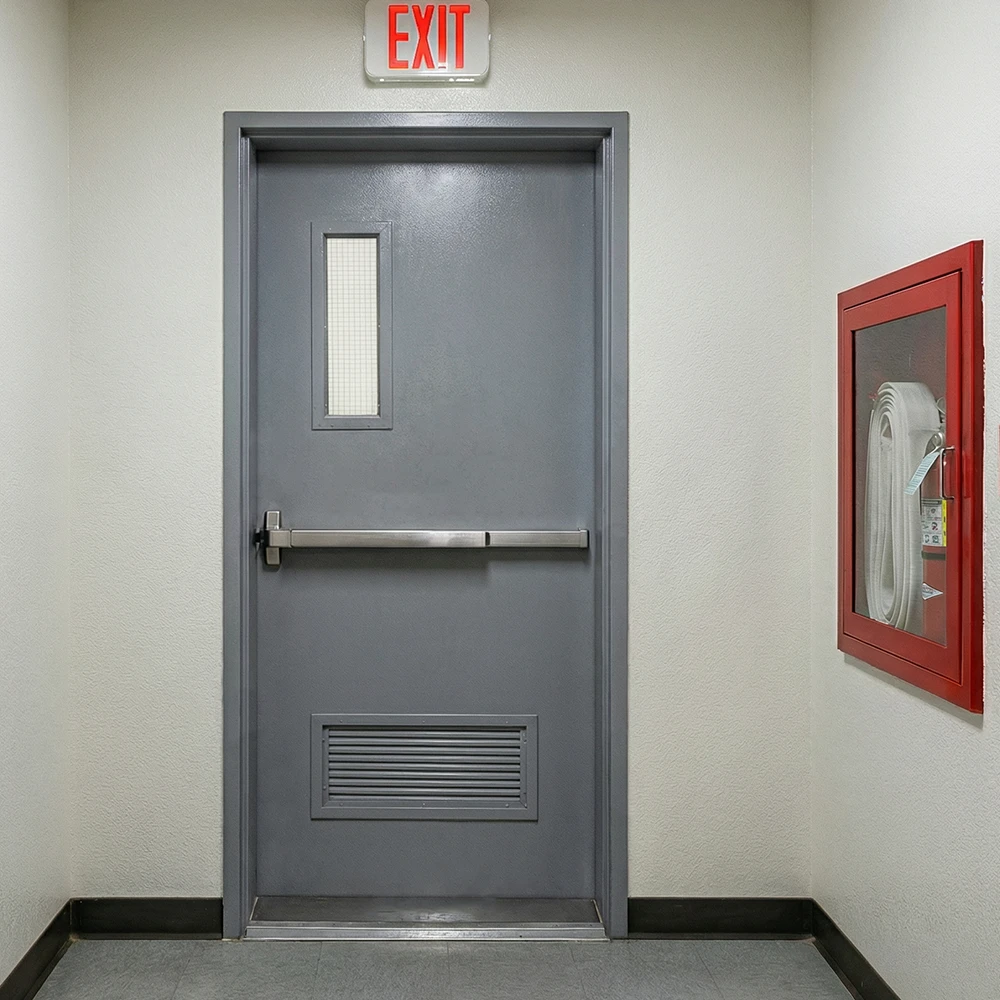

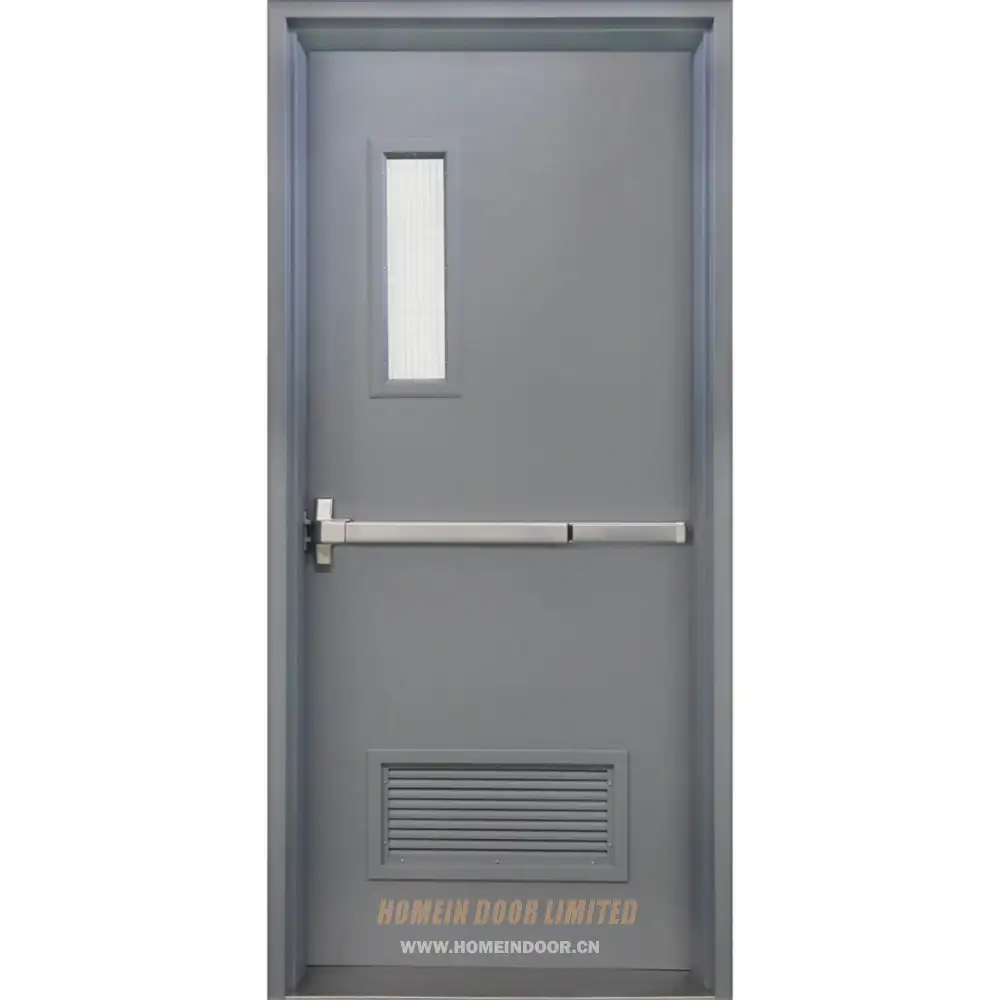

A steel exit door with bottom louver is a high-performance safety door designed to ensure quick evacuation and controlled airflow in emergency situations. This emergency exit door with bottom louver is constructed from premium galvanized steel and features a fireproof mineral core, offering fire integrity of up to 3 hours and fire insulation for up to 2 hours. Certified by UL and tested by Intertek, it meets rigorous fire safety standards, making it ideal for commercial, industrial, and institutional buildings.

Equipped with a panic push bar for fast and easy egress, this exit door with bottom louver also includes a fire damper louver insert at the bottom of the door. This special louver allows airflow and moisture ventilation under normal conditions, while its fire-rated damper automatically closes in the event of a fire to prevent the spread of flames and smoke.

The door size is customizable, with maximum dimensions of 1220mm in width and 2440mm in height, ensuring suitability for various applications. Its wide design aids smooth evacuation, especially in crowded or high-traffic areas.

Combining fire safety, ventilation, and emergency functionality, the emergency exit door with bottom louver is a smart, code-compliant choice for modern buildings prioritizing both safety and performance.

Door material	0.8~1.2mm Galvanized steel
Frame material	1.2~1.8mm Galvanized steel
Door core	Mineral core; acoustic wool
Finish	Powder coating
Leaf thick	Std:45mm (customizable)
Width	Std:3ft (customizable Max: 1250mm single leaf)
Height	Std:7ft (customizable Max: 4000mm)
Hardware	Push bar & trim; Hinge; Closer
STC	STC45 STC56
Fire rate	120 minutes, 180 minutes

Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction (Optional)

Isolation and Fireproof Exit door

50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof mineral core; Graphite smoke seal; Fire rate 2 hours, isolation 1 hour

Acoustic and Fireproof Exit door

90mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, fireproof and soundproof core; smoke seal+acoustic seal; Fire rate 2 hour, STC56

Fireproof Exit door

45mm or 50mm Thk; 1.0 galvanized steel panel; 1.5mm galvanzied steel hollow frame, Fireproof honeycomb paper core; smoke seal all round; Fire rate 3 hours

Door Frame Type (Optional)
