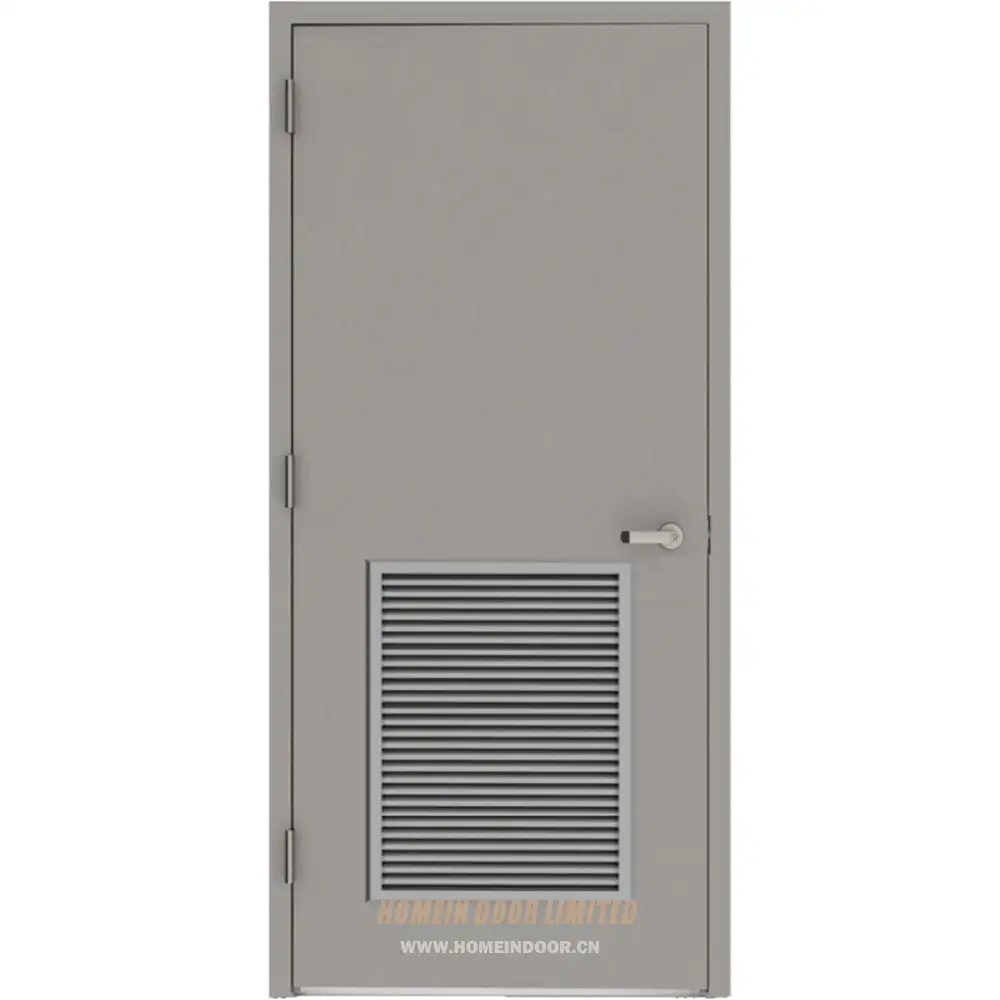

Homein Commercial steel bottom half louvered door
MOQ: 1PCS
Custom Size
Fast Delivery
Quality Assurance
Item NO.:
LMD06Door Type.:
Single door, swing doorMaterial
Galvanized steelApplication:
Electrical room, Utility RoomsColor:
Powder-coating, GreyDesign:
Half lite louver doorStyle:
ModernLead Time:
30 daysSuppliy ability:
1500 sets per monthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10c BS476Ref Price:
260 USD

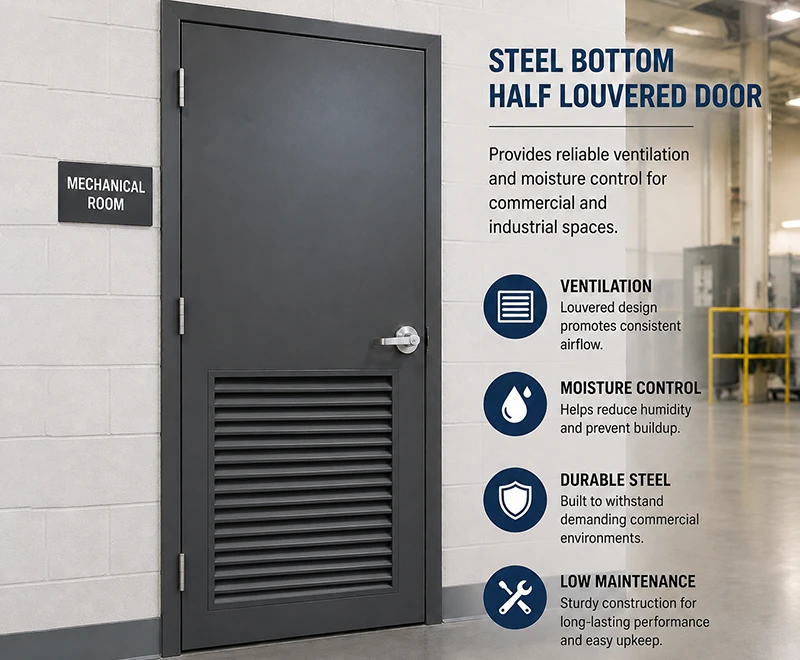

A commercial steel bottom half louvered door is designed to provide air-flow and moisture control in commercial and industrial environment. Made from galvanized steel, this door come with a louver insert located on the bottom half of the door to allow efficient airflow and moisture escape.
There are several louver options available for this metal bottom half louvered door, including fixed louvers for constant ventilation, adjustable blade louvers for customizable airflow, and fireproof smoke-proof louvers for fire safety. Both the louver size dimensions can be customized to fit specific project needs

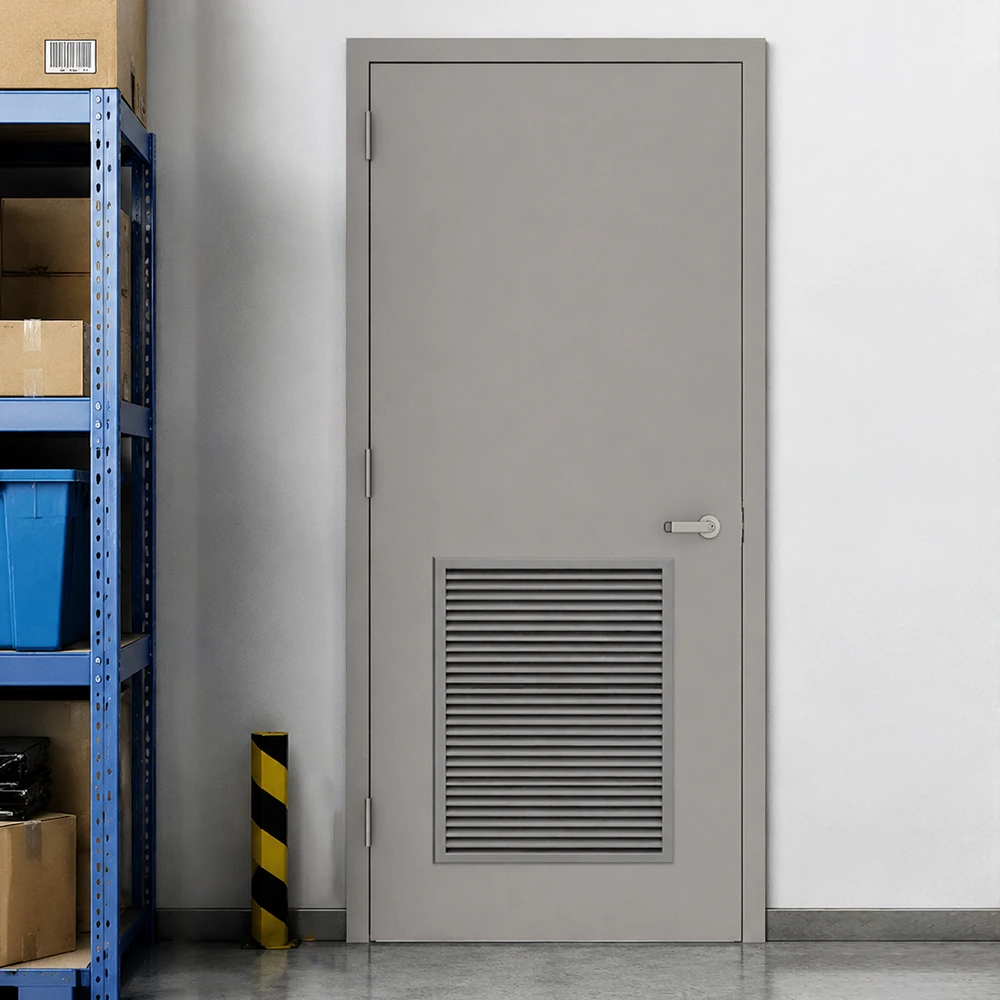

This bottom half louvered door is ideal for spaces such as storage areas, and utility closets where ventilation and moisture control is crucial. Combining the strength of galvanized steel with efficient ventilation, the steel bottom half louvered door is a reliable and versatile choice for commercial applications requiring both airflow and security.
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Honeycomb; PU; mineral core; acoustic wool |
| Finish | Poweder coating |
| Leaf thick | Std:45mm (customizable,Max:90mm) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Louver | NFR louver or Fireproof louver |
| Louver Blade | Inverted V blade,Flat blade,Z blade |
| Fire rate | Max 120min |
Right hand interior
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Left hand interior
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Right hand outside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Left hand outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Construction
Normal louver door construction
Optional blade shape: Inverted V blade,z blade,flat blade or Adjustable Blade Louver
Fireproof louver door construction
Steel Flat blade embed with smoke seal; with stainless steel cover,fire rate up to 60 minutes
Door Frame Type
Knock-down frame A
1.2-1.8mm Galvanized steel frame; Knock-down frame;
Knock-down frame B
1.2-1.8mm Galvanized steel frame; Knock-down frame;
Double rebate frame
1.2-1.8mm Galvanized steel frame; welded frame;
Double egress frame
1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door
Weld frame
1.2-1.8mm Galvanized steel frame; welded frame;
Standard Door Hardware
Standard Mortise Lock
SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 3hours
View More >>>
Standard Lock for USA
SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 2hours
View More >>>
fire rated door Hydraulic closer
Aluminum alloy; adjustable speed; Fire rate up to 1.5hours
View More >>>
Fireproof Butt Hinge
SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours
View More >>>Popular Solid color
RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 9010 Pure White
RAL 9016 Traffic White
RAL 7035 Light Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 9011 Graphite Black
Read More Color >>>
