Top China Door Manufacturer

China Door Manufacturer

Products
Commercial steel door with air louver Commercial steel door with air louver Commercial steel door with air louver Commercial steel door with air louver

Homein Commercial steel door with air louver

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    LMD04
  • Door Type.:

    Single door, swing door
  • Material

    Galvanized steel
  • Application:

    Electrical room, Utility Rooms
  • Color:

    Powder-coating, Grey
  • Design:

    Full panel louver door
  • Style:

    Modern
  • Lead Time:

    30 days
  • Suppliy ability:

    1500 sets per month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c BS476
  • Ref Price:

    300 USD

A commercial steel door with an air louver is designed for commercial buildings that require airflow, moisture control, and heat ventilation, such as mechanical rooms, electrical rooms, utility rooms, and storage areas.

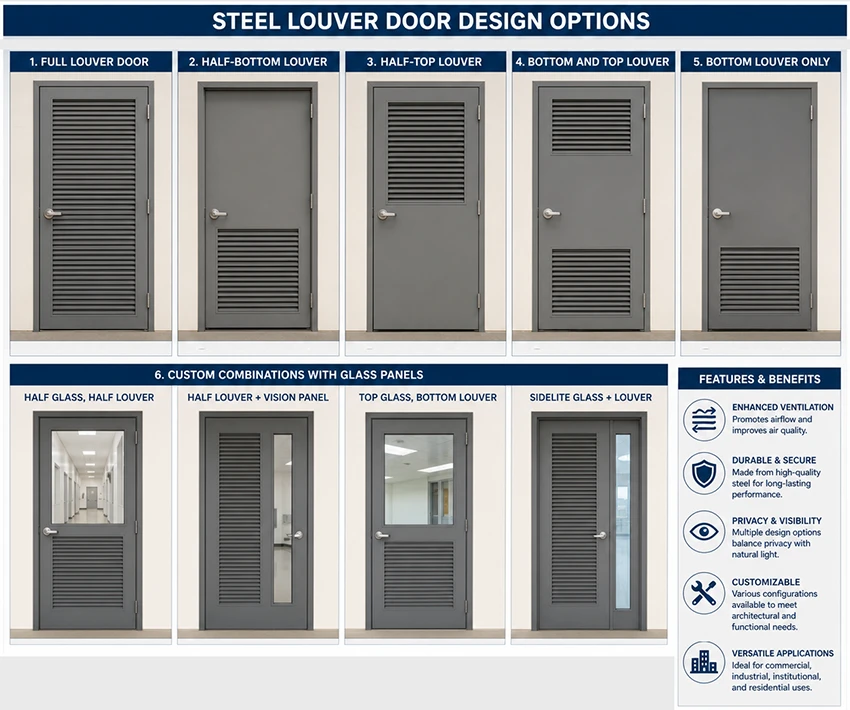

Made from thicker galvanized steel, this door can be fitted with a steel or aluminum louver. The louver size can be customized according to project requirements. It can be designed as a half-louver or full-louver door, with the louver placed at the bottom, top, or across the full door leaf depending on airflow, heat-control, and moisture-control needs.

For special safety requirements, smoke-proof and fireproof louvers are also available to help control the spread of smoke and fire.

Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable,Max:90mm)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Louver NFR louver or Fireproof louver
Louver Blade Inverted V blade,Flat blade,Z blade
Fire rate Max 120min
door handing Right hand interior
Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

door handing Left hand interior
Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

door handing Right hand outside
Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

door handing Left hand outside
Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction

door with Normal louver door construction
Normal louver door construction

Optional blade shape: Inverted V blade,z blade,flat blade or Adjustable Blade Louver

door with Fireproof louver door construction
Fireproof louver door construction

Steel Flat blade embed with smoke seal; with stainless steel cover,fire rate up to 60 minutes

Door Frame Type

Knock-down frame A
Knock-down frame A

1.2-1.8mm Galvanized steel frame; Knock-down frame;

Knock-down frame B
Knock-down frame B

1.2-1.8mm Galvanized steel frame; Knock-down frame;

Double rebate frame
Double rebate frame

1.2-1.8mm Galvanized steel frame; welded frame;

Double egress frame
Double egress frame

1.2-1.8mm Galvanized steel frame; welded frame; use for acoustic door

Weld frame
Weld frame

1.2-1.8mm Galvanized steel frame; welded frame;

Standard Door Hardware

Standard Mortise Lock
Standard Mortise Lock

SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 3hours

View More >>>
Standard Lock for USA
Standard Lock for USA

SUS304 handle; SUS304 forend; SUS latch & deadbolt; brass cylinder & key; SUS304 screw; Fire rate up to 2hours

View More >>>
fire rated door Hydraulic closer
fire rated door Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Fireproof Butt Hinge
Fireproof Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>
Door catcher
Door catcher

SUS304 stainless steel; Magenatic catcher

View More >>>

Popular Solid color

RAL 3020 Traffic Red
RAL 3003 Ruby Red
RAL 3000 Flame Red
RAL 5003 Sapphire Blue
RAL 5005 Signal Blue
RAL 5011 Steel Blue
RAL 9010 Pure White
RAL 9016 Traffic White
RAL 7035 Light Grey
RAL 7000 Squirrel Grey
RAL 7021 Black Grey
RAL 9011 Graphite Black

Read More Color >>>
